Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
| Piston Tipi: | Pistonlu | Yapılandırma: | Sabit |
|---|---|---|---|
| Güç kaynağı: | AC Güç | Yağlama Stili: | Yağlı |
| Gaz: | R22 / R134a | Sürücü modu: | Elektrik |
| Renk: | mavi | Türü: | Soğutma Pistonlu Kompresör |
| Vurgulamak: | vidalı hava kompresörü,scroll compressor refrigeration |
||

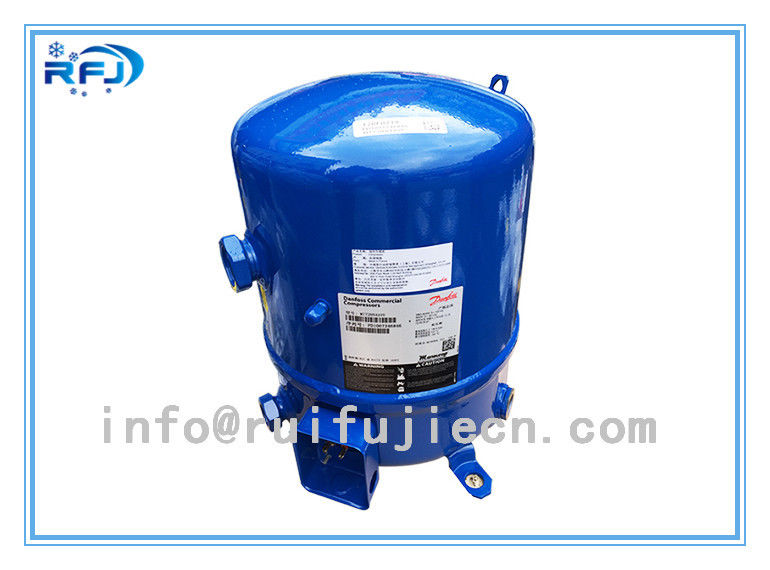

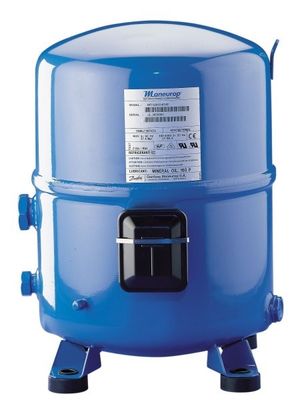

Maneurop Piston compressor MT72/MTZ72
Product Description:
1.Brand: Maneurop
2.Model:MT72 /MTZ72
3.Refrigerant:MT72 forR22,R417 ; MTZ72 for R407C,R134a,R404a,R507
4.The Motor Voltage:380-460V/3/50-60HZ
5.Net weight:40kg
6.Country of origin:Fance
We can supply more compressor models as below:
| MODEL (R22) | MODEL (R404A) | NTZ series |
| MT18-4VM | MTZ18-4VM | NTZ048A4LR1A |
| MT22-4VM | MTZ22-4VM | NTZ068A4LR1A |
| MT28-4VM | MTZ28-4VM | NTZ096A4LR1A |
| MT32-4VM | MTZ32-4VM | NTZ108A4LR1A |
| MT36-4VM | MTZ36-4VM | NTZ136A4LR1A |
| MT40-4VM | MTZ40-4VM | NTZ215A4LR1A |
| MT44-4VM | MTZ44-4VM | NTZ271A4LR1A |
| MT50-4VM | MTZ50-4VM | |
| MT56-4VM | MTZ56-4VM | |
| MT64-4VM | MTZ64-4VM | |
| MT72-4VM | MTZ72-4VM | |
| MT80-4VM | MTZ80-4VM | |
| MT100-4VM | MTZ100-4VM | |
| MT125-4VM | MTZ125-4VM | |
| MT144-4VM | MTZ144-4VM | |
| MT160-4VM | MTZ160-4VM |
| Code no. | HP | MT-R22 | MTZ-R407C | MTZ-R134a | MTZ-R404 | ||||||||
| Kw | BTUH | EER | Kw | BTUH | EER | Kw | BTUH | EER | Kw | BTUH | EER | ||
| MT/MTZ18 | 1.5 | 1.74 | 15900 | 9.15 | 1.67 | 15300 | 9.13 | 1.22 | 11200 | 9.2 | 1.76 | 10300 | 5.1 |
| MT/MTZ22 | 2 | 2.27 | 22000 | 9.68 | 2.17 | 19600 | 9 | 1.54 | 14800 | 9.63 | 2.05 | 14100 | 6.01 |
| MT/MTZ28 | 2.5 | 3.07 | 30200 | 9.86 | 2.83 | 25100 | 8.9 | 2.04 | 19300 | 9.42 | 2.68 | 18300 | 5.96 |
| MT/MTZ32 | 2.75 | 3.58 | 33000 | 9.22 | 3.21 | 28400 | 8.86 | 2.39 | 20900 | 8.76 | 2.99 | 20100 | 5.85 |
| MT/MTZ36 | 3 | 4.05 | 38000 | 9.38 | 3.75 | 32700 | 8.73 | 2.75 | 24500 | 8.91 | 3.34 | 23200 | 6.05 |
| MT/MTZ40 | 3.5 | 4.63 | 42900 | 9.27 | 4.33 | 37400 | 8.64 | 3.08 | 27900 | 9.03 | 3.77 | 26400 | 6.11 |
| MT/MTZ44 | 4 | 4.67 | 45200 | 9.69 | 4.37 | 43000 | 9.84 | 3.14 | 29800 | 9.51 | 4.18 | 27800 | 6.65 |
| MT/MTZ50 | 4.5 | 5.18 | 50500 | 9.74 | 4.96 | 48100 | 9.71 | 3.6 | 34500 | 9.57 | 4.83 | 32500 | 6.73 |
| MT/MTZ56 | 5 | 6.05 | 56400 | 9.32 | 5.67 | 54300 | 9.59 | 3.95 | 38000 | 9.62 | 5.44 | 36500 | 6.71 |
| MT/MTZ64 | 5.5 | 6.8 | 64800 | 9.53 | 6.36 | 60400 | 9.5 | 4.68 | 45300 | 9.66 | 6.12 | 41500 | 6.78 |
| MT/MTZ72 | 6 | 7.58 | 70100 | 9.26 | 7.22 | 67900 | 9.41 | 5.19 | 50000 | 9.63 | 6.91 | 46500 | 6.72 |
| MT/MTZ80 | 7 | 8.56 | 80000 | 9.35 | 8.24 | 76900 | 9.33 | 6 | 56500 | 9.42 | 8.03 | 52500 | 6.54 |
| MT/MTZ100 | 9 | 9.59 | 95900 | 10 | 9.9 | 94400 | 9.53 | 6.5 | 63900 | 9.84 | 8.72 | 60800 | 6.07 |
| MT/MTZ125 | 10 | 12.81 | 124600 | 9.73 | 12.62 | 122100 | 9.67 | 7.72 | 78900 | 10.2 | 11.37 | 78400 | 6 |
| MT/MTZ144 | 12 | 14.36 | 140700 | 9.8 | 14.47 | 137200 | 9.48 | 9.82 | 96900 | 9.87 | 13 | 92300 | 6.19 |
| MT/MTZ160 | 13.5 | 16.09 | 156800 | 9.75 | 16.67 | 155100 | 9.31 | 10.92 | 107600 | 9.85 | 14.74 | 100300 | 5.93 |
