Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
| Piston Type: | hermetic | Configuration: | Protable |
|---|---|---|---|
| Power Source: | AC | Lubrication Style: | Lubricated |
| Drive Mode: | Electric | Gas: | R134A |
| Temperature: | HBP | Voltage: | 230v 60hz |
| phase: | 1 | ||
| Vurgulamak: | scroll compressor refrigeration,copeland refrigeration compressors |
||

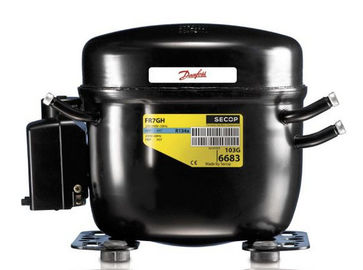

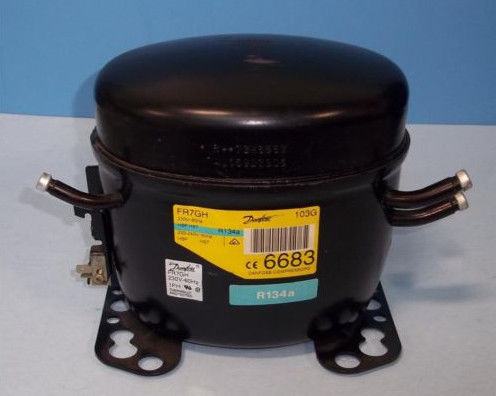

Secop Hermetic Freezer Refrigeration Compressor Secop series FR7GH 230V 60Hz 1PH
The FR7GH compressor range goes from small direct current hermetic compressors for mobile applications up to large scroll compressors for commercial air conditioning or industrial applications. Special versions, such as energy optimized compressors, variable speed compressors and compressors for solar applications are available. The range covers all common HFC, HCFC and CFC refrigerants as well as hydro-carbons for the smaller models. compressors are used in numerous applications such as white goods, mobile refrigeration, light commercial refrigeration, commercial refrigeration and air conditioning.
| Connection: | Tube |
|---|---|
| Dim 1 (mm): | 196 |
| Model Number: | FR7GH |
| Warranty: | 1 Year |
| Depth With Decoration Panel (mm): | - |
| Displacement CC: | 6,93 |
| Electric Supply: | 230v/one phase/50Hz230v/one phase/60Hz |
| Electrical Rating: | - |
| Phase: | - |
| Refrigerant: | R134a |
| Refrigerant Suitability: | R134a |
| Tube Connection Size (mm): | 8,2 |
| Valve Connections: | - |
| Width With Decoration Panel (mm): | - |
| Horse Power: | 1/3 |
| Expansion Device: | C/V |
| Application Temperature (C): | High |
| Application Temperature (C): | High |
More Secop Specification:
1. The voltage is 12V/24V/48V/220V to 240V
2. Hermetic compressor
3. the refrigerant is R134a R404 /R 507/R 22
4. Low Back pressure /High Back presssure
5. frequency is 50/60 HZ
We can supply more compressor models as below:
| Model | Code | Voltage | Refrigerant |
| NL7CLX | 105F3710 | 220-240V/50HZ | R404A |
| NL8.4CLX | 105F3800 | ||
| FR6CL | 103U2670 | ||
| FR8.5CLX | 103U2890 | ||
| NF5.5CLX | 105F1621 | 115V/60HZ | |
| NF7CLX | 105F3720 | ||
| TL4.5CLX | 102U2111 | 220-240V/50HZ | |
| TL4CLX | 102U2071 | ||
| TF4CLX | 102U2102 | 115-127V/60HZ | |
| FR6G | 103G6660 | 220-240V/50HZ | R134A |
| FR7.5G | 103G6680 | ||
| FR8.5G | 103G6780 | ||
| FR10G | 103G6890 | ||
| FR11G | 103G6980 | ||
| NL6.1MF | 105G6660 | 220-240V/50-60HZ | |
| NL8.4MF | 105G6879 | ||
| NL10MF | 105G6885 | ||
| NL11MF | 105G6151 | ||
| NL10FT | 105G6829 | 220-240V/50HZ | |
| FR7GH | 103G6683 | ||
| FF6GK | 103G5680 | 115V/60HZ | |
| FF7.5GK | 103G5780 | ||
| FF8.5GX | 103G5880 | ||
| FF10GX | 103G5980 | ||
| NF5.5FX | 105G5623 | 115-127V/60HZ | |
| NF6.1FX.2 | 105G5631 | ||
| NF7.3FX.2 | 105G5722 | ||
| NF8.4FX.2 | 105G5631 | ||
| NF11FX | 105G5947 | ||
| TL5G | 102G4550 | 220-240V/50HZ | |
| TL4G | 102G4452 |
| BD Series | 101Z0200 | BD35F | 12/24V | R134a |
| 101Z1220 | BD50F | |||
| 101Z0280 | BD80F | |||
| 101Z0400 | BD250GH | 12/24V | ||
| 101Z0402 | 48V | |||
| 101Z0500 | 12/24V | |||
| 102Z3015 | BD350GH | 12V | ||
| 102Z3016 | 24V | |||
| 102Z3031 | 48V | |||
| 102Z3018 | 12V | |||
| 102Z3017 | 24V | |||
| 102Z3032 | 48V |
