| Model NO: | QJ208HCA | Capacity: | 3546W |
|---|---|---|---|
| Refrigerant: | R22 | Configuration: | Stationary |
| Application: | High Back Pressure Type | Specification: | TUV, CCC |
| Trade Mark: | LG | Input Power: | 1121W |
| Cop: | 3.16 | Power Source: | AC Power |
| Vurgulamak: | refrigerant compressor,rotary compressor for air conditioner |
||

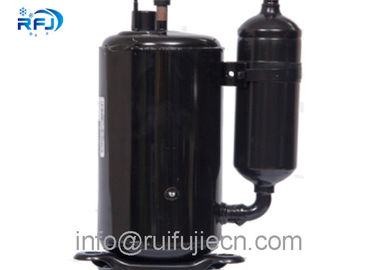

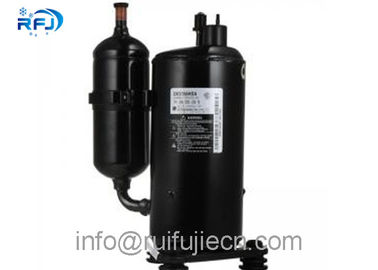

50Hz 1 phase 220v LG AC Rotary Compressor QJ208HCA 12000BTU Working R22 gas

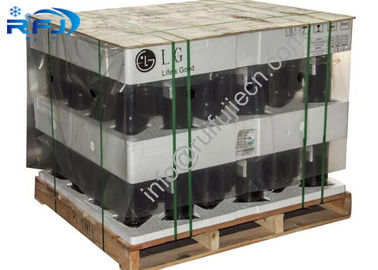

LG rotary compressor,Model:QJ208HCA,Working R22 gas,50hz,1 phase,220v,12000btu.40PCS/One pallet
LG rotary compressor for QJ series:
Description:
1. high efficiency design
2. high reliability
3. low vibration& noise
Specification:
LG rotary compressor QJ Series.
1. Working R22 gas.
2. 50hz,1 phase,220v.
3. 12000 BTU.
4. 20 units packing with one pallet.
More QJ series LG compressor model as follow:
| Power Source | Model | Cooling Capacity | Motor Input | EER | COP | Oil Charge | ||||||
| [Btu/hr] | [Watts] | [Watts] | [Btu/W.hr] | [W/W] | [cc] | |||||||
| 1PH, 200-220V, 50Hz | QJ208J | 11950 | 3502 | 1149 | 10.4 | 3.05 | 410 | |||||
| QJ222J | 12700 | 3722 | 1176 | 10.8 | 3.16 | 410 | ||||||
| QJ236J | 13550 | 3971 | 1316 | 10.3 | 3.02 | 410 | ||||||
| QJ250J | 14500 | 4249 | 1436 | 10.1 | 2.96 | 410 | ||||||
| QJ264J | 15300 | 4484 | 1485 | 10.3 | 3.02 | 410 | ||||||
| QJ292J | 16800 | 4923 | 1555 | 10.8 | 3.17 | 500 | ||||||
| QJ325J | 18800 | 5509 | 1773 | 10.6 | 3.11 | 500 | ||||||
| QJ348J | 20700 | 6067 | 2010 | 10.3 | 3.02 | 650 | ||||||
| 1PH, 220V, 50Hz | QJ208H | 12000 | 3516 | 1121 | 10.7 | 3.14 | 410 | |||||
| QJ222H | 12950 | 3795 | 1210 | 10.7 | 3.14 | 410 | ||||||
| QJ236H | 13818 | 4052 | 1316 | 10.5 | 3.08 | 410 | ||||||
| QJ250H | 14450 | 4234 | 1350 | 10.7 | 3.14 | 410 | ||||||
| QJ306H | 17373 | 5091 | 1670 | 10.4 | 3.05 | 410 | ||||||
| QJ336H | 19700 | 5773 | 1894 | 10.4 | 3.05 | 410 |
||||||
| Specification/(R22/single cylinder) | ||||||||||||
| Refrigerant | Types | Frequency | voltage | series | model | Btu/hr | Watts | Watts | Btu/W.hr | W/W | ||
| R22 | single cylinder | 50Hz | 1Φ.200/240V | QJ | QJ236J | 13,550 | 3,971 | 1,320 | 10.27 | 3.01 | ASHRAE | |
| QJ264J | 15,400 | 4,513 | 1,475 | 10.44 | 3.06 | ASHRAE | ||||||
| QJ292J | 16,800 | 4,923 | 1,555 | 10.8 | 3.17 | ASHRAE | ||||||
| QJ325J | 18,800 | 5,509 | 1,773 | 10.6 | 3.11 | ASHRAE | ||||||
| QJ196P | 11,400 | 3,341 | 1,040 | 10.96 | 3.21 | ASHRAE | ||||||
| QJ208P | 12,280 | 3,599 | 1,082 | 11.35 | 3.33 | ASHRAE | ||||||
| QJ222P | 13,026 | 3,817 | 1,163 | 11.2 | 3.28 | ASHRAE | ||||||
| QJ236P | 13,600 | 3,985 | 1,307 | 10.41 | 3.05 | ASHRAE | ||||||
| QJ264P | 15,200 | 4,454 | 1,407 | 10.8 | 3.17 | ASHRAE | ||||||
| QJ282P | 16,600 | 4,864 | 1,523 | 10.9 | 3.19 | ASHRAE | ||||||
| QJ292P | 16,700 | 4,894 | 1,575 | 10.6 | 3.11 | ASHRAE | ||||||
| QJ306P | 18,500 | 5,421 | 1,715 | 10.79 | 3.16 | ASHRAE | ||||||
| QJ330P | 19,900 | 5,832 | 1,877 | 10.6 | 3.11 | ASHRAE | ||||||
| QJ306K | 22,200 | 6,505 | 2,094 | 10.6 | 3.11 | ASHRAE | ||||||
| QJS | QJS208P | 11,850 | 3,473 | 1,040 | 11.39 | 3.34 | ASHRAE | |||||
| QJS222P | 12,950 | 3,795 | 1,136 | 11.4 | 3.34 | ASHRAE | ||||||
| QJS295P | 17,450 | 5,114 | 1,585 | 11.01 | 3.23 | ASHRAE | ||||||
| ASHRAE | ||||||||||||
| QJH | QJH190P | 11,100 | 3,253 | 977 | 11.36 | 3.33 | ASHRAE | |||||
| QJH215P | 12,450 | 3,649 | 1,112 | 11.2 | 3.28 | ASHRAE | ||||||
