| model: | CSH7553-50Y | TYPE: | screw compressor |
|---|---|---|---|
| Oil Charge(dm3): | 10 | power source: | 380v -415V |
| horse power: | 50HZ | refrigerant: | R134A/ R407C / R22 |
| Vurgulamak: | semi hermetic reciprocating compressor,Hava Soğutmalı Yoğuşmalı Ünitesi |
||

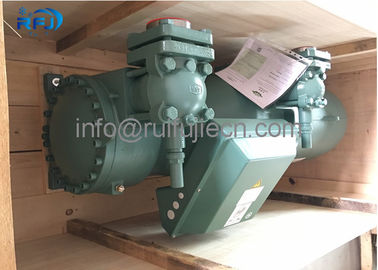

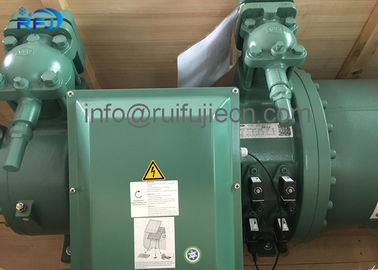

50hp compressor CSH7553-50Y screw compressor service
1. Features:
1) High efficiency, Good reliability, Low noise, Low vibration, No leakage
2) Wide range of application
The Compressor uses R22 as refrigerant. R134a, R404a, R407b and R407c are also approved. R12 and R502 are not suggested due to the international environment protection requirement. The machine can be used at a low or high condensing temperature.
3)Excellent performance
The compressor has a scientific structure design, strictly chosen material and precise procession and it is strictly inspected. The factory has obtained the National Compulsory Products CCC Certification, the National Industrial Products Manufacture License, and the ISO9001:2008 International Quality Supervision System Certification.
Based on one technical concept,
| Technical data and Performance data | ||||||||||
| compressor type |
Motor version | DispIace-ment 50/60Hz |
Refrigerating capacity Qo | Oil Charge | Motor connection | Max. operating current |
Max. power consum |
|||
| R134a | R407C | |||||||||
| to/tc 5℃/50℃ |
to/tc -10℃/45℃ |
to/tc 5℃/50℃ |
to/tc -10℃/45℃ |
|||||||
| ① | ② | m3/h③ | W | W | W | W | dm3 | A④ | KW④ | |
| CSH6553-35Y | 2 | 137/165 | 75600 | 41400 | - | - | 9,5 | 400V(±10%)∆/∆∆-3-50Hz 460V(±10%)∆/∆∆-3-60Hz Part Winding --- 400V(±10%)∆-3-50Hz 460V(±10%)∆-3-60Hz Y/∆⑤ |
58 | 34 |
| CSH6553-50(Y) | 1 | 75100 | 41600 | 106400 | 61900 | 86 | 52 | |||
| CSH6563-40Y | 2 | 170/205 | 94300 | 52400 | - | - | 9,5 | 66 | 41 | |
| CSH6563-60(Y) | 1 | 94300 | 52300 | 133700 | 77700 | 108 | 65 | |||
| CSH6583-50Y | 2 | 195/236 | 108800 | 60700 | 10 | 81 | 51 | |||
| CSH6593-60Y | 2 | 220/266 | 122800 | 68500 | 10 | 105 | 56 | |||
| CSH7553-50Y | 2 | 197/238 | 106700 | 57800 | - | - | 15 | 79 | 52 | |
| CSH7553-70(Y) | 1 | 108400 | 58600 | 155000 | 89200 | 128 | 78 | |||
| CSH7563-60Y | 2 | 227/274 | 125800 | 68200 | - | - | 15 | 98 | 65 | |
| CSH7563-80(Y) | 1 | 125000 | 68100 | 175400 | 101700 | 144 | 88 | |||
| CSH7573-70Y | 2 | 258/311 | 144600 | 78500 | - | - | 15 | 124 | 78 | |
| CSH7573-90(Y) | 1 | 145000 | 79700 | 203600 | 119900 | 162 | 96 | |||
| CSH7583-80Y | 2 | 295/356 | 168600 | 93200 | - | - | 15 | 144 | 88 | |
| CSH7583-(100Y) | 1 | 169100 | 94200 | 238200 | 141700 | 170 | 102 | |||
| CSH7593-90Y | 2 | 336/406 | 192000 | 106200 | - | - | 15 | 162 | 96 | |
| CSH7593-110(Y) | 1 | 192500 | 107100 | 270500 | 160800 | 180 | 112 | |||
| CSH8553-80Y | 2 | 315/380 | 177500 | 97300 | - | - | 22 | 144 | 88 | |
| CSH8553-110(Y) | 1 | 181700 | 102600 | 256900 | 151800 | 185 | 112 | |||
| CSH8563-90Y | 2 | 359/433 | 204600 | 112200 | - | - | 22 | 155 | 96 | |
| CSH8563-125(Y) | 1 | 207000 | 117000 | 293000 | 173000 | 216 | 132 | |||
| CSH8573-110Y | 2 | 410/495 | 239600 | 133000 | - | - | 22 | 182 | 110 | |
| CSH8573-140(Y) | 1 | 239000 | 135100 | 383400 | 199800 | 246 | 150 | |||
| CSH8583-125Y | 2 | 470/567 | 264800 | 147300 | - | - | 19 | 196 | 120 | |
| CSH8583-160(Y) | 1 | 259500 | 143800 | 378900 | 217800 | 260 | 160 | |||
| CSH8593-140Y | 2 | 535/646 | 301400 | 167600 | - | - | 19 | 214 | 131 | |
| CSH8593-180(Y) | 1 | 302400 | 167500 | 454500 | 260300 | 310 | 186 | |||
| CSH9553-180(Y) | 1 | 535/646 | 303800 | 167800 | - | - | 30 | 400V(±10%)∆-3-50Hz 460V(±10%)∆-3-60Hz Y/∆⑤ |
330 | 205 |
| 443700 | 254300 | |||||||||
| CSH9563-160Y | 2 | 615/742 | 357000 | 197400 | - | - | 30 | 280 | 155 | |
| CSH9563-210(Y) | 1 | 354300 | 197200 | 505000 | 294300 | 370 | 246 | |||
| CSH9573-180Y | 2 | 700/845 | 417200 | 230900 | - | - | 30 | 310 | 175 | |
| CSH9573-240(Y) | 1 | 409500 | 229700 | 601200 | 345100 | 420 | 255 | |||
| CSH9583-210Y | 2 | 805/972 | 480500 | 270200 | - | - | 30 | 320 | 204 | |
| CSH9583-280(Y) | 1 | 471900 | 265300 | 688900 | 398600 | 450 | 280 | |||
| CSH9593-240Y | 2 | 910/1098 | 546000 | 307100 | - | - | 30 | 360 | 222 | |
| CSH9593-300(Y) | 1 | 546000 | 307100 | 783000 | 453100 | 450 | 280 | |||
| CSH95103-280Y | 2 | 1015/1225 | 588200 | 328200 | - | - | 32 | 413 | 254 | |
| CSH95103-320(Y) | 1 | 588200 | 328200 | 868000 | 494600 | 566 | 305 | |||
| CSH95113-320Y | 2 | 1120/1351 | 644400 | 359000 | 32 | 447 | 277 | |||
| 1 | ||||||||||
