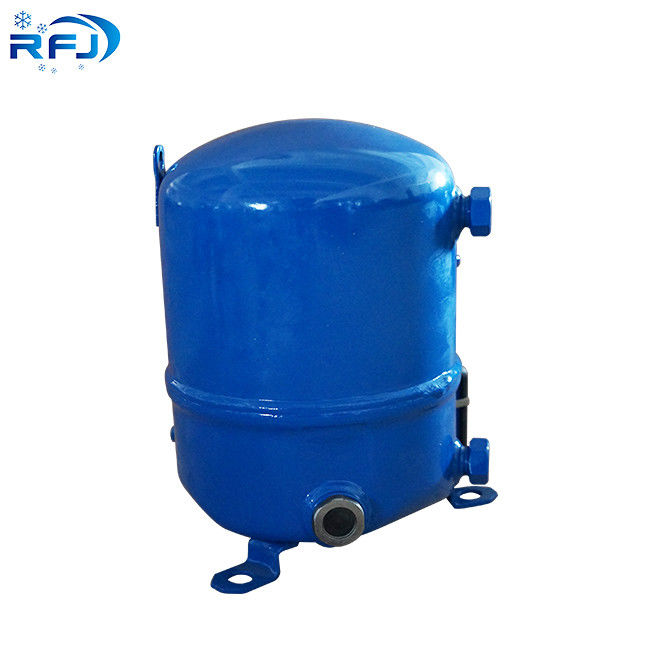

Klima için 50 / 60HZ Pistonlu Maneurop Kompresörler MTZ144-4
1, ürün açıklaması:
Motor koruması: Dahili aşırı yük koruyucusu
Kompresör güç kaynağı [V / Ph / Hz]: 380-400 / 3/50 460/3/60
Kapasite kontrolü: Sabit hız
Güç bağlantıları: Maça
Güç Kaynağı: AC Güç
Frekans [Hz]: 50/60
Renk: Mavi
Faz: 3
Taşıma Paketi: Ahşap Paket
Yağlama Tarzı: yağlanmış
2. ürün özelliği ve uygulama:
High Temperature. Yüksek sıcaklık. BtuH Capacity @ 45°F Evap. BtuH Kapasitesi @ 45 ° F Evap. 78103. Compressor 78103. Kompresör, Reciprocating. , Pistonlu. Discharge Conn. 1-1/4" ROT. Phase, 3. Refrigerant, R404A. Deşarj Bağlantısı 1-1 / 4 "ROT. Faz, 3. Soğutucu akışkan, R404A.
Maneurop MT / MTZ serisi kompresörler hermetik pistonlu tiptedir ve Orta ve yüksek buharlaşma sıcaklığı uygulamaları için tasarlanmıştır. Refrigerant: R134a; Soğutucu: R134a; R404A; R404A; R407A; R407A; R407C; R407C; R407F; R407F; R448A; R448A; R449A; R449A; R452A; R452A; R507A; R507A; R513A, Segment usage: Air conditioning;Refrigeration MT, Compressor power supply [V/Ph/Hz]: 400/3/50 460/3/60 R513A, Segment kullanımı: Klima; Soğutma MT, Kompresör güç kaynağı [V / Ph / Hz]: 400/3/50 460/3/60
3.Ürün Detayları
model |
Süpürme Hacmi (cm3 / devir) |
Silindir Sayısı |
Yağ değişimi
(Dm3)
|
Net ağırlık
(kilogram)
|
MTZ018 |
30 |
1 |
0.95 |
21 |
MTZ022 |
38 |
1 |
0.95 |
21 |
MTZ028 |
48 |
1 |
0.95 |
23 |
MTZ032 |
54 |
1 |
0.95 |
24 |
MTZ064 |
108 |
2 |
1.80 |
39 |
MTZ080 |
136 |
2 |
1.80 |
40 |
MTZ160 |
272 |
4 |
3.90 |
67 |
Maneurop® reciprocating compressors from Commercial Compressors are specially designed for applications with a wide range of operating conditions. Ticari Kompresörlerden Maneurop® pistonlu kompresörler, çok çeşitli çalışma koşullarına sahip uygulamalar için özel olarak tasarlanmıştır. All components are of high quality and precision in order to assure a long product life. Uzun bir ürün ömrü sağlamak için tüm bileşenler yüksek kalite ve hassasiyettedir. Maneurop® MT and MTZ series compressors are of the hermetic reciprocating type and are designed for medium and high evaporating temperature applications. Maneurop® MT ve MTZ serisi kompresörler hermetik pistonlu tiptedir ve orta ve yüksek buharlaşma sıcaklığı uygulamaları için tasarlanmıştır. The positive benefits of internal motor protection, high efficiency circular valve design and high torque motors provide for a quality installation. Dahili motor korumasının, yüksek verimli dairesel valf tasarımının ve yüksek tork motorlarının olumlu faydaları kaliteli bir kurulum sağlar. MT & MTZ have the same mechanical and motor design. MT ve MTZ aynı mekanik ve motor tasarımına sahiptir. MT is charged with mineral oil while MTZ with polyester oil. MT mineral yağ ile, MTZ polyester yağ ile doldurulur. These compressor ranges can be used with a large choice of refrigerants according their compatibility with the oil. Bu kompresör serileri, yağ ile uyumluluklarına göre çok çeşitli soğutucu akışkanlarla kullanılabilir. . .
MT and MTZ compressors are fully suctiongas cooled. MT ve MTZ kompresörler tamamen emme gazı soğutmalıdır. This means that no additional compressor cooling is required and allows the compressors to be insulated with acoustic jackets, to obtain lower sound levels, without the risk of compressor overheating. Bu, ek kompresör soğutması gerekmediği anlamına gelir ve kompresörün aşırı ısınma riski olmadan daha düşük ses seviyeleri elde etmek için kompresörlerin akustik ceketlerle yalıtılmasına izin verir.
The Turbocor® compressor uses an integrated variable frequency drive to reduce compressor speed and maximize energy cost savings as the condensing temperature and/or heat load decreases. Turbocor® kompresör, yoğuşma sıcaklığı ve / veya ısı yükü azaldıkça kompresör hızını azaltmak ve enerji maliyet tasarrufunu en üst düzeye çıkarmak için entegre bir değişken frekanslı tahrik kullanır. The soft start module, which is standard on every Turbocor® compressor, significantly reduces the in-rush current at start up, provides advantages to line power systems and reduces thermal stress on the stator Her Turbocor® kompresörde standart olan yumuşak başlangıç modülü, başlatma sırasındaki ani akımı önemli ölçüde azaltır, hat güç sistemlerine avantajlar sağlar ve stator üzerindeki termal stresi azaltır
4. Ana kompresör hatlarımız:
· Bitzer kompresörleri
· Performans kompresörleri: SM, SZ, SH SERİSİ
· Ticari kompresörler: FR, SC SERİSİ
· Copeland kompresörleri: VR, ZR, ZB, ZH SERİSİ
· Manevrop pistonlu kompresörler: MT, MTZ NTZ, MPZ SERİSİ
5.Ürün yeterliliği
Sertifika, sertifika, patent belgesi:
1). "Soğutma Ekipmanları Klima Bakım ve Montaj İşletme Yeterlilik Belgesi"
2). "Shenzhen Bilim ve Teknoloji Kurumsal Sertifikasyon"
3). "Kalite Yönetim Sistemi Belgesi"
