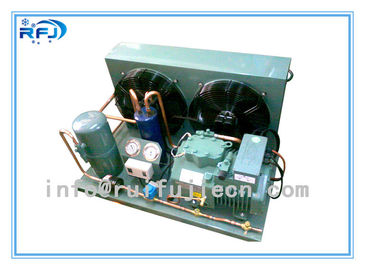

15HP low temperature Condensing Unit 4PCS-15.2 for cold storage room
Compressor condensing unit is widely used for different temperature range, applicable in cold storage, chiller room, freezer room etc.
Description:
1.Model:4PCS-15.2
2.Horse Power:15HP
3.Voltage:380V/50HZ/3Phase,440-480V/60HZ/3PH
4.Capacity:27700W
5.Type:semi-hermetic condensing unit
6.using on:the cold room, the fishing-boat...etc.
We can supply more models from 2HP to 50HP of Air cooler
Condensing unit as below:
|
New model Number |
Old model number |
Horse power |
|
2HES-1 |
2HC-1.2 |
1HP |
|
2HES-2 |
2HC-2.2 |
2HP |
|
2GES-2 |
2GC-2.2 |
2HP |
|
2FES-2 |
2FC-2.2 |
2HP |
|
2FES-3 |
2FC-3.2 |
3HP |
|
2EES-2 |
2EC-2.2 |
2HP |
|
2EES-3 |
2EC-3.2 |
3HP |
|
2DES-2 |
2DC-2.2 |
2HP |
|
2DES-3 |
2DC-3.2 |
3HP |
|
2CES-3 |
2CC-3.2 |
3HP |
|
2CES-4 |
2CC-4.2 |
4HP |
|
4FES-3 |
4FC-3.2 |
3HP |
|
4FES-5 |
4FC-5.2 |
5HP |
|
4EES-4 |
4EC-4.2 |
4HP |
|
4EES-6 |
4EC-6.2 |
6HP |
|
4DES-5 |
4DC-5.2 |
5HP |
|
4DES-7 |
4DC-7.2 |
7HP |
|
4CES-6 |
4CC-6.2 |
6HP |
|
4CES-9 |
4CC-9.2 |
9HP |
|
4VES-7 |
4VCS-6.2 |
6HP |
|
4VES-10 |
4VCS-10.2 |
10HP |
|
4TES-9 |
4TCS-8.2 |
8HP |
|
4TES-12 |
4TCS-12.2 |
12HP |
|
4PES-12 |
4PCS-10.2 |
10HP |
|
4PES-15 |
4PCS-15.2 |
15HP |
|
4NES-14 |
4NCS-12.2 |
12HP |
|
4NES-20 |
4NCS-20.2 |
20HP |
|
4JE-15 |
4J-13.2* |
13HP |
|
4JE-22 |
4J-22.2* |
22HP |
|
4HE-18 |
4H-15.2* |
15HP |
|
4HE-25 |
4H-25.2* |
25HP |
|
4GE-23 |
4G-20.2* |
20HP |
|
4GE-30 |
4G-30.2* |
30HP |
|
6JE-25 |
6J-22.2* |
20HP |
|
6JE-33 |
6J-33.2* |
33HP |
|
6HE-28 |
6H-25.2* |
25HP |
|
6HE-35 |
6H-35.2* |
35HP |
|
6GE-34 |
6G-30.2* |
30HP |
|
6GE-40 |
6G-40.2* |
40HP |
|
6FE-44 |
6F-40.2* |
40HP |
|
6FE-50 |
6F-50.2* |
50HP |
| Model | Horse power | Displacemet (50hz)m3/h |
Qty of cylinder*Diameter*Stoke(mm) |
| 2DC-2.2 | 2 | 13.5 | 2*50*39.3 |
| 2DC-3.2 | 3 | 13.5 | 2*50*39.3 |
| 2CC-3.2 | 3 | 16.2 | 2*55*39.3 |
| 2CC-4.2 | 4 | 16.2 | 2*55*39.3 |
| 4DC-5.2 | 5 | 26.84 | 4*50*39.3 |
| 4DC-7.2 | 7 | 26.84 | 4*50*39.3 |
| 4CC-6.2 | 6 | 32.48 | 4*55*39.3 |
| 4CC-9.2 | 9 | 32.48 | 4*55*39.3 |
| 4TCS-8.2 | 8 | 41.33 | 4*60*42 |
| 4TCS-12.2 | 12 | 41.33 | 4*60*42 |
| 4PCS-10.2 | 10 | 48.5 | 4*65*42 |
| 4PCS-15.2 | 15 | 48.5 | 4*65*42 |
| 4NCS-12.2 | 12 | 56.25 | 4*70*42 |
| 4NCS-20.2 | 20 | 56.25 | 4*70*42 |
| 4H-15.2 | 15 | 73.6 | 4*70*55 |
| 4H-25.2 | 25 | 73.6 | 4*70*55 |
| 4G-20.2 | 20 | 84.5 | 4*75*55 |
| 4G-30.2 | 30 | 84.5 | 4*75*55 |
| 6H-25.2 | 25 | 110.5 | 6*70*55 |
| 6H-35.2 | 35 | 110.5 | 6*70*55 |
| 6G-30.2 | 30 | 126.8 | 6*75*55 |
| 6G-40.2 | 40 | 126.8 | 6*75*55 |
| 6F-40.2 | 40 | 151.6 | 6*82*55 |
| 6F-50.2 | 50 | 151.6 | 6*82*55 |
| S6H-20.2 | 20 | 36.8 | 6*70*55 |
| S6G-25.2 | 25 | 42.3 | 6*75*55 |
| S6F-30.2 | 30 | 50.5 | 6*82*55 |
