| Marka Adı: | Dixell |
| Model Numarası: | XR Series |
| Moq: | 1pcs |
| fiyat: | discussed |
| Teslim Zamanı: | 7-10 working days after received your payment |
| Ödeme Şartları: | L/C, T/T, Western Union |

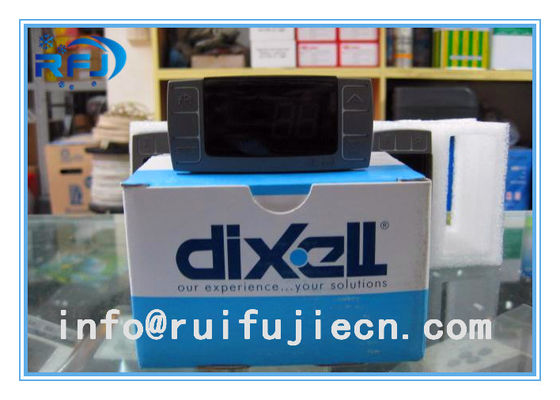

DIXELL digital temperature controller
Specifications:
Dixell Controller
DIGITAL CONTROLLER WITH "OFF CYCLE" DEFROST
Generals
Product details:
1.Shell: ABS sublight flame retardant plastic;
2.Dimensions: front 32x74 mm;Deep 60 mm
3.Mounting dimensions: fixed in the open hole for 71x29mm panel;
4.Display: 3 red digital tubes, 14.2 mm high;Input: no. 3 NTC or PTC input
5.Digital input: 1 channel passive digital signal input
6.Output relay: compressor/plus hotline: 20(8)A 250Vac
7.Data storage: electrically erasable electronic writing memory (EEPROM).
8.Control level: 1B;Environmental level: 2;Software level: A;
9.Maximum insulation voltage: 2500V;Grade of overvoltage: II;
10.Working temperature: 0 ~ 60 ° C;Storage temperature: - 30 ~ 85 ° C.
11.Relative humidity: 20~85RH% (unexposed)
12.Measure and control temperature range: NTC: - 40 ~ 110 ° C;PTC: - 50 ~ 150 ° C
More Models as below:
| XR01CX-5N0C1 | XR02CX |
| XR03CX-5N0C0 | XR03CX |
| XR04CX-5N0C1 | XR04CX |
| XR06CX-5N0C1 | XR06CX |
| XR10CX-5N0C1 | XR10CX |
| XR30CX-5N0C1 | XR30CX |
| XR40CX-5N0C1 | XR40CX |
| XR60CX-5N0C1 | XR60CX |
| XR30CX-5R0C1 | XR20CX |
| XR60CX-5R0C1 | XR70CX |
|
|
