Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
| Piston Type: | Reciprocating | Configuration: | Stationary |
|---|---|---|---|
| Power Source: | AC Power | Lubrication Style: | Lubricated |
| Gas: | R134a | Drive Mode: | Electric |
| Color: | Blue | Type: | Refrigeration Piston Compressor |
| Vurgulamak: | vidalı hava kompresörü,scroll compressor refrigeration |
||

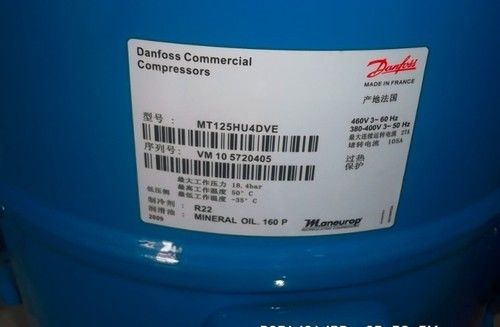

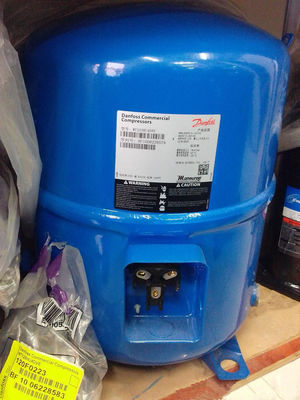

Maneurop piston compressor MT-125 with gas R22 Air conditioner compressor
Specification:
Maneurop MT/MTZ series compressors are of the hermetic reciprocating type and are designed for Medium and high evaporating temperature applications.
There are 26 different models with displacement ranging from 30-543cm3/rev.
Our Maneurop compressors are for 50Hz, motor code is 4, can be used for R22/R407C/R134a/R404A/R507
1. Piston /reciprocating type compressors.
2. Voltage is 50Hz
3. The refrigerant are R22/R407C/R134a/R404A/R507
4. There are MT/MTZ series
5. Original from France.
6.Capacity: 1.5HP~13HP, High efficiency, Low noise
1.MT series for R134a
2. MTZ series for R407c/134a
1.50 Hz
2. Imported form France.
3.R22 Rated condition:50Hz/400V
superheat:11.1K
subcooling 8.3K condensing temp:54.4°C
4.R407C Rated condition :50Hz 400V
superheat:11.1K
subcooling 8.3K condensing temp:54.4°C
evaporating temp.7.2°C
refrigeration and power input±5%
We can supply more compressor models as below:
| Compressor Model |
Swept Volume | Displacement | Nomimal Ratings* | Number of Cylinders |
Oil Charge Litre |
Net Weight kg |
||||
| 50Hz 2900 rpm m/hr |
60Hz 3500rpm m/hr |
50Hz | 60Hz | |||||||
| Cooling Capacity W |
COP W/W |
Cooling Capacity W |
COP W/W |
|||||||
| NTZ048 | 48 | 8.4 | 10.1 | 995 | 1.15 | 1190 | 1.13 | 1 | 0.95 | 21 |
| NTZ068 | 68 | 11.8 | 14.3 | 1749 | 1.15 | 1870 | 1.1 | 1 | 0.95 | 23 |
| NTZ096 | 96 | 16.7 | 20.2 | 2002 | 1.15 | 2395 | 1.16 | 2 | 1.8 | 35 |
| NTZ108 | 108 | 18.7 | 22.6 | 2465 | 1.16 | 2788 | 1.1 | 2 | 1.8 | 35 |
| NTZ136 | 136 | 23.6 | 28.5 | 3225 | 1.11 | 3739 | 1.12 | 2 | 1.8 | 35 |
| NTZ215 | 215 | 27.5 | 45.2 | 4948 | 1.19 | 5886 | 1.19 | 4 | 3.9 | 62 |
| NTZ271 | 271 | 47.3 | 57 | 6955 | 1.24 | 8058 | 1.21 | 4 | 3.9 | 64 |
| (*)Motor code 4 operating Conditions:R404a,Evap.Temp.:-35°C,Cond.temp.:40°C,RGT:20°C.SC:0k | ||||||||||
| MODEL (R22) | MODEL (R404A) | NTZ series |
| MT18-4VM | MTZ18-4VM | NTZ048A4LR1A |
| MT22-4VM | MTZ22-4VM | NTZ068A4LR1A |
| MT28-4VM | MTZ28-4VM | NTZ096A4LR1A |
| MT32-4VM | MTZ32-4VM | NTZ108A4LR1A |
| MT36-4VM | MTZ36-4VM | NTZ136A4LR1A |
| MT40-4VM | MTZ40-4VM | NTZ215A4LR1A |
| MT44-4VM | MTZ44-4VM | NTZ271A4LR1A |
| MT50-4VM | MTZ50-4VM | |
| MT56-4VM | MTZ56-4VM | |
| MT64-4VM | MTZ64-4VM | |
| MT72-4VM | MTZ72-4VM | |
| MT80-4VM | MTZ80-4VM | |
| MT100-4VM | MTZ100-4VM | |
| MT125-4VM | MTZ125-4VM | |
| MT144-4VM | MTZ144-4VM | |
| MT160-4VM | MTZ160-4VM |
| Model NO. | Nom HP | Displ. Cc/rev | Capacity R404a(w) | |
| -10 | -5 | |||
| MTZ18-4VI | 1.5 | 30.2 | 1580 | 2110 |
| MTZ18-5VI | 1.5 | 30.2 | 1580 | 2110 |
| MTZ22-4VI | 1.8 | 38.12 | 2270 | 2920 |
| MTZ22-5VI | 1.8 | 38.12 | 2270 | 2920 |
| MTZ28-4VI | 2.3 | 48.06 | 2880 | 3720 |
| MTZ28-5VI | 2.3 | 48.06 | 2880 | 3720 |
| MTZ32-4VI | 2.7 | 53.86 | 3230 | 4220 |
| MTZ32-5VI | 2.7 | 53.86 | 3230 | 4220 |
| MTZ36-4VI | 3 | 60.47 | 3800 | 4870 |
| MTZ36-5VI | 3 | 60.47 | 3800 | 4870 |
| MTZ40-4VI | 3.3 | 67.89 | 4280 | 5490 |
| MTZ45-4VI | 3.8 | 76.22 | 4420 | 5840 |
| MTZ51-4VI | 4.2 | 85.64 | 5290 | 6920 |
| MTZ57-4VI | 4.8 | 96.13 | 6060 | 7880 |
| MTZ65-4VI | 5.4 | 107.71 | 7080 | 9130 |
| MTZ73-4VI | 6.1 | 120.94 | 7960 | 10230 |
| MTZ81-4VI | 6.8 | 135.78 | 9160 | 11720 |
| MTZ100-4VI | 8.3 | 171.26 | 10390 | 13500 |
| MTZ125-4VI | 10.4 | 215.44 | 13650 | 17500 |
| MTZ144-4VI | 12 | 241.87 | 15740 | 20120 |
| MTZ160-4VI | 13.3 | 271.55 | 17690 | 22520 |
| Code no. | HP | MT-R22 | MTZ-R407C | MTZ-R134a | MTZ-R404 | ||||||||
| Kw | BTUH | EER | Kw | BTUH | EER | Kw | BTUH | EER | Kw | BTUH | EER | ||
| MT/MTZ18 | 1.5 | 1.74 | 15900 | 9.15 | 1.67 | 15300 | 9.13 | 1.22 | 11200 | 9.2 | 1.76 | 10300 | 5.1 |
| MT/MTZ22 | 2 | 2.27 | 22000 | 9.68 | 2.17 | 19600 | 9 | 1.54 | 14800 | 9.63 | 2.05 | 14100 | 6.01 |
| MT/MTZ28 | 2.5 | 3.07 | 30200 | 9.86 | 2.83 | 25100 | 8.9 | 2.04 | 19300 | 9.42 | 2.68 | 18300 | 5.96 |
| MT/MTZ32 | 2.75 | 3.58 | 33000 | 9.22 | 3.21 | 28400 | 8.86 | 2.39 | 20900 | 8.76 | 2.99 | 20100 | 5.85 |
| MT/MTZ36 | 3 | 4.05 | 38000 | 9.38 | 3.75 | 32700 | 8.73 | 2.75 | 24500 | 8.91 | 3.34 | 23200 | 6.05 |
| MT/MTZ40 | 3.5 | 4.63 | 42900 | 9.27 | 4.33 | 37400 | 8.64 | 3.08 | 27900 | 9.03 | 3.77 | 26400 | 6.11 |
| MT/MTZ44 | 4 | 4.67 | 45200 | 9.69 | 4.37 | 43000 | 9.84 | 3.14 | 29800 | 9.51 | 4.18 | 27800 | 6.65 |
| MT/MTZ50 | 4.5 | 5.18 | 50500 | 9.74 | 4.96 | 48100 | 9.71 | 3.6 | 34500 | 9.57 | 4.83 | 32500 | 6.73 |
| MT/MTZ56 | 5 | 6.05 | 56400 | 9.32 | 5.67 | 54300 | 9.59 | 3.95 | 38000 | 9.62 | 5.44 | 36500 | 6.71 |
| MT/MTZ64 | 5.5 | 6.8 | 64800 | 9.53 | 6.36 | 60400 | 9.5 | 4.68 | 45300 | 9.66 | 6.12 | 41500 | 6.78 |
| MT/MTZ72 | 6 | 7.58 | 70100 | 9.26 | 7.22 | 67900 | 9.41 | 5.19 | 50000 | 9.63 | 6.91 | 46500 | 6.72 |
| MT/MTZ80 | 7 | 8.56 | 80000 | 9.35 | 8.24 | 76900 | 9.33 | 6 | 56500 | 9.42 | 8.03 | 52500 | 6.54 |
| MT/MTZ100 | 9 | 9.59 | 95900 | 10 | 9.9 | 94400 | 9.53 | 6.5 | 63900 | 9.84 | 8.72 | 60800 | 6.07 |
| MT/MTZ125 | 10 | 12.81 | 124600 | 9.73 | 12.62 | 122100 | 9.67 | 7.72 | 78900 | 10.2 | 11.37 | 78400 | 6 |
| MT/MTZ144 | 12 | 14.36 | 140700 | 9.8 | 14.47 | 137200 | 9.48 | 9.82 | 96900 | 9.87 | 13 | 92300 | 6.19 |
| MT/MTZ160 | 13.5 | 16.09 | 156800 | 9.75 | 16.67 | 155100 | 9.31 | 10.92 | 107600 | 9.85 | 14.74 | 100300 | 5.93 |
