| Model Numarası: | KVL series |
| Moq: | 1pcs |
| fiyat: | discussed |
| Teslim Zamanı: | 7-10 working days after received your payment |
| Ödeme Şartları: | L/C, T/T, Western Union |

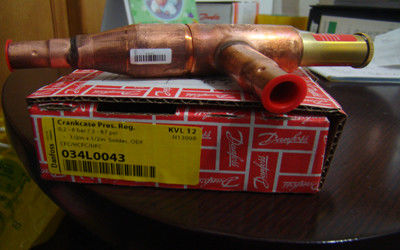

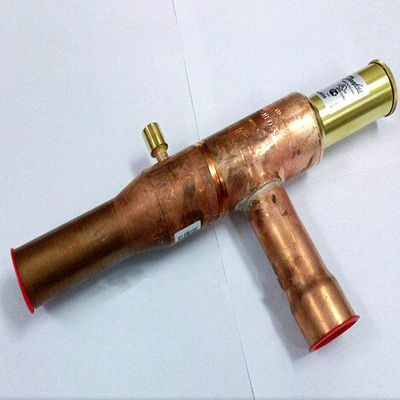

refrigeration controls Crankcase Pressure Regulaor model KVL
Specifications:

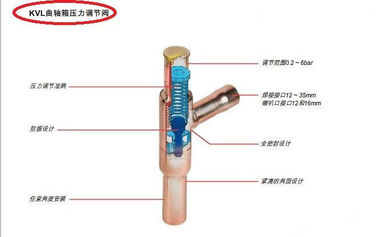

Crankcase pressure regulator type KVL is fitted in the suction line ahead of the compressor.
The KVL protects the compressor motor against overload during start-up after long standstill periods or after defrost periods.
More Models as below:
| Model KVL | |||||||
| Part Number | Model Number | Regulating Range kPa (psig) |
Connections | Rated Capacity (kW) | |||
| R22 | R134a | R404A | R407C | ||||
| Crankcase Pressure Regulator | |||||||
| 034L0041 | KVL12 | 20 to 600 (3 to 87) | 1/2" Fl 1 | 7.1 | 5.3 | 6.3 | 6.5 |
| 034L0042 | KVL15 | 5/8" Fl 1 | |||||
| 034L0043 | KVL12 | 1/2" ODS | |||||
| 034L0049 | KVL15 | 5/8" ODS | |||||
| 034L0045 | KVL22 | 7/8" ODS | 17.8 | 13.2 | 15.9 | 16.4 | |
| 034L0046 | KVL28 | 1-1/8" ODS | |||||
| 034L0052 | KVL35 | 1-3/8" ODS | |||||
| Type | Rated capacity in (kw) | solder connection (inch) |
Code no. | |||
| R22 | R134a | R404A/507 | R407C | |||
| KVL12 | 7.1 | 5.3 | 6.3 | 6.5 | 1/2 | 034L0043 |
| KVL15 | 7.1 | 5.3 | 6.3 | 6.5 | 5/8 | 034L0049 |
| KVL22 | 7.1 | 5.3 | 6.3 | 6.5 | 7/8 | 034L0045 |
| KVL28 | 17.8 | 13.2 | 15.9 | 16.4 | 1 1/8 | 034L0046 |
| KVL35 | 17.8 | 13.2 | 15.9 | 16.4 | 1 3/8 | 034L0052 |
|
| Model Numarası: | KVL series |
| Moq: | 1pcs |
| fiyat: | discussed |
| Paketleme Ayrıntıları: | Carton box |
| Ödeme Şartları: | L/C, T/T, Western Union |
refrigeration controls Crankcase Pressure Regulaor model KVL
Specifications:
Crankcase pressure regulator type KVL is fitted in the suction line ahead of the compressor.
The KVL protects the compressor motor against overload during start-up after long standstill periods or after defrost periods.
More Models as below:
| Model KVL | |||||||
| Part Number | Model Number | Regulating Range kPa (psig) |
Connections | Rated Capacity (kW) | |||
| R22 | R134a | R404A | R407C | ||||
| Crankcase Pressure Regulator | |||||||
| 034L0041 | KVL12 | 20 to 600 (3 to 87) | 1/2" Fl 1 | 7.1 | 5.3 | 6.3 | 6.5 |
| 034L0042 | KVL15 | 5/8" Fl 1 | |||||
| 034L0043 | KVL12 | 1/2" ODS | |||||
| 034L0049 | KVL15 | 5/8" ODS | |||||
| 034L0045 | KVL22 | 7/8" ODS | 17.8 | 13.2 | 15.9 | 16.4 | |
| 034L0046 | KVL28 | 1-1/8" ODS | |||||
| 034L0052 | KVL35 | 1-3/8" ODS | |||||
| Type | Rated capacity in (kw) | solder connection (inch) |
Code no. | |||
| R22 | R134a | R404A/507 | R407C | |||
| KVL12 | 7.1 | 5.3 | 6.3 | 6.5 | 1/2 | 034L0043 |
| KVL15 | 7.1 | 5.3 | 6.3 | 6.5 | 5/8 | 034L0049 |
| KVL22 | 7.1 | 5.3 | 6.3 | 6.5 | 7/8 | 034L0045 |
| KVL28 | 17.8 | 13.2 | 15.9 | 16.4 | 1 1/8 | 034L0046 |
| KVL35 | 17.8 | 13.2 | 15.9 | 16.4 | 1 3/8 | 034L0052 |
