| Marka Adı: | Ruifujie |
| Model Numarası: | DSL-16.4/80 |
| Moq: | 1 |
| fiyat: | Discussed |
| Teslim Zamanı: | 1 ay |
| Ödeme Şartları: | T/T, Western Union |

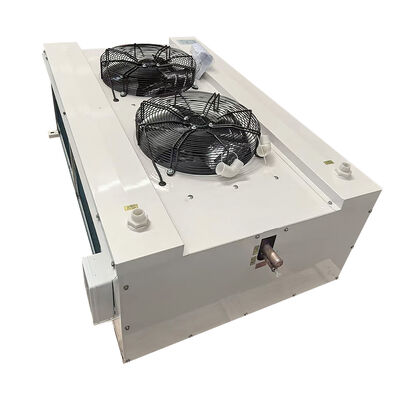

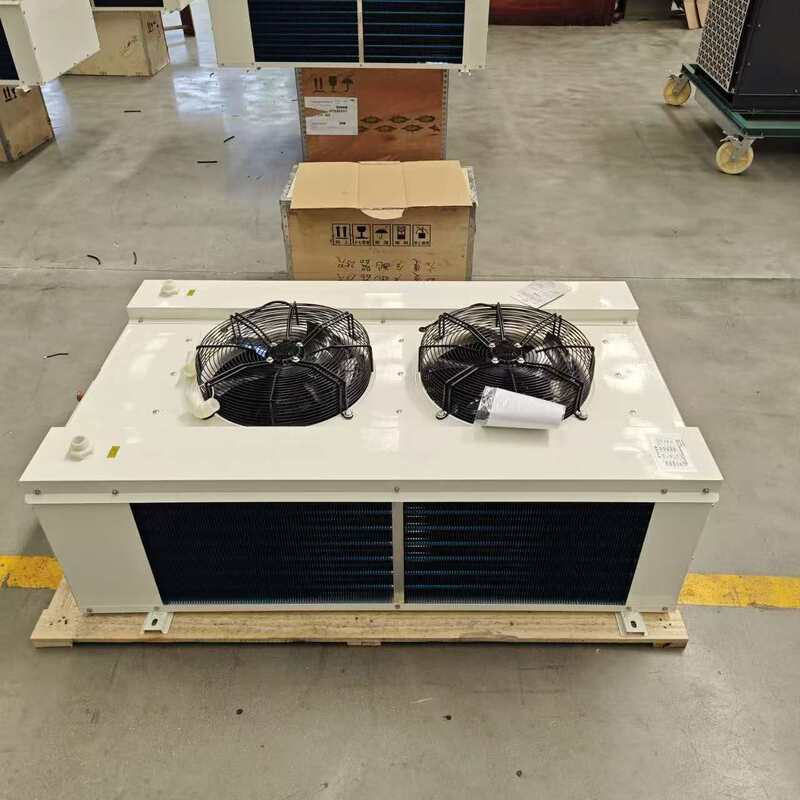

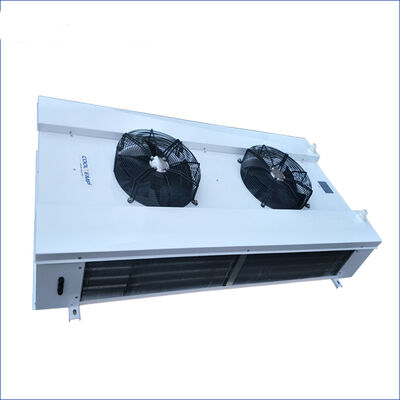

The DSL-16.4/80 high efficiency evaporator refrigeration is a dual-outlet ceiling-mounted unit designed for 80㎡ medium-large medium-temperature cold storage, such as pre-made food refrigerated warehouses, fresh produce distribution centers and large catering central kitchens. With a nominal cooling capacity of 16400W and dual 6500m³/h air supply outlets, it achieves wide-range uniform air coverage, effectively reducing temperature stratification in tall cold rooms and maintaining stable storage conditions for perishable goods.
Medium-large cold storage with frequent cargo access often faces problems like large cooling load fluctuations and fast frost formation on heat exchange surfaces, which will reduce refrigeration efficiency and increase operation costs. This evaporator refrigeration adopts an optimized dual-fan dual-air duct structure to quickly compensate for temperature rise caused by door openings, and is equipped with a split electric defrost system to keep stable heat exchange performance under long-term continuous operation.
As a reliable medium-temperature evaporator refrigeration, it is built with seamless copper heat exchange tubes and 4.5mm corrosion-resistant aluminum fins, delivering excellent heat transfer efficiency and anti-rust performance to adapt to high-humidity fresh storage environments. It is compatible with common refrigerants such as R22, R404A and R134a, and can be easily matched with various standard condensing units. The ceiling-mounted installation saves floor space maximally, and the integrated drain pan with heating function prevents condensate icing and blockage, lowering daily maintenance workload.
| Model | DSL-16.4/80 |
|---|---|
| Nominal Cooling Capacity | 16400 W |
| Heat Exchange Area | 80 ㎡ |
| Tube Volume | 11.1 L |
| Inlet & Outlet Pipe Diameter | φ19 mm / φ32 mm |
| Coil Defrosting Power | 3000 W |
| Water Dish Defrosting Power | 3000 W |
Ruifujie is a professional modern refrigeration equipment manufacturer with over 20 years of in-depth experience in the global market. Our full product range includes scroll, piston, rotor, semi-hermetic and screw refrigeration compressors, as well as supporting cold room systems, quick-freezing equipment and ice making machines. We provide comprehensive OEM and ODM customization services to meet the diversified and personalized needs of customers worldwide. Our products are widely exported to the United States, the United Kingdom and Saudi Arabia. Supported by strong R&D capability, strict quality control and competitive pricing, we have established long-term stable cooperative partnerships with buyers across the globe and gained consistent positive feedback from overseas customers.
|
|
| Marka Adı: | Ruifujie |
| Model Numarası: | DSL-16.4/80 |
| Moq: | 1 |
| fiyat: | Discussed |
| Paketleme Ayrıntıları: | tahta sandık |
| Ödeme Şartları: | T/T, Western Union |
The DSL-16.4/80 high efficiency evaporator refrigeration is a dual-outlet ceiling-mounted unit designed for 80㎡ medium-large medium-temperature cold storage, such as pre-made food refrigerated warehouses, fresh produce distribution centers and large catering central kitchens. With a nominal cooling capacity of 16400W and dual 6500m³/h air supply outlets, it achieves wide-range uniform air coverage, effectively reducing temperature stratification in tall cold rooms and maintaining stable storage conditions for perishable goods.
Medium-large cold storage with frequent cargo access often faces problems like large cooling load fluctuations and fast frost formation on heat exchange surfaces, which will reduce refrigeration efficiency and increase operation costs. This evaporator refrigeration adopts an optimized dual-fan dual-air duct structure to quickly compensate for temperature rise caused by door openings, and is equipped with a split electric defrost system to keep stable heat exchange performance under long-term continuous operation.
As a reliable medium-temperature evaporator refrigeration, it is built with seamless copper heat exchange tubes and 4.5mm corrosion-resistant aluminum fins, delivering excellent heat transfer efficiency and anti-rust performance to adapt to high-humidity fresh storage environments. It is compatible with common refrigerants such as R22, R404A and R134a, and can be easily matched with various standard condensing units. The ceiling-mounted installation saves floor space maximally, and the integrated drain pan with heating function prevents condensate icing and blockage, lowering daily maintenance workload.
| Model | DSL-16.4/80 |
|---|---|
| Nominal Cooling Capacity | 16400 W |
| Heat Exchange Area | 80 ㎡ |
| Tube Volume | 11.1 L |
| Inlet & Outlet Pipe Diameter | φ19 mm / φ32 mm |
| Coil Defrosting Power | 3000 W |
| Water Dish Defrosting Power | 3000 W |
Ruifujie is a professional modern refrigeration equipment manufacturer with over 20 years of in-depth experience in the global market. Our full product range includes scroll, piston, rotor, semi-hermetic and screw refrigeration compressors, as well as supporting cold room systems, quick-freezing equipment and ice making machines. We provide comprehensive OEM and ODM customization services to meet the diversified and personalized needs of customers worldwide. Our products are widely exported to the United States, the United Kingdom and Saudi Arabia. Supported by strong R&D capability, strict quality control and competitive pricing, we have established long-term stable cooperative partnerships with buyers across the globe and gained consistent positive feedback from overseas customers.
