Ürün ayrıntıları

Evde Ürünler

cold room unit

Name: cold room unit
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: DSD-7.0/40
Price: 5,000.00 USD
Availability: InStock

Marka Adı:	Ruifujie
Model Numarası:	DSD-7.0/40
Moq:	1
fiyat:	Discussed
Teslim Zamanı:	1 ay
Ödeme Şartları:	T/T, Western Union

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Garanti:

1 yıl

Adedi:

1 takım

Modeli:

DSD-11.2/60

Başvuru:

Soğuk Oda, Dondurucu

Fan gücü:

2x414W

Eşleşen Alan:

60㎡

Ambalaj:

Ahşap kabın ambalajı

Nominal Soğutma Kapasitesi:

11.2kw

Ambalaj bilgileri:

Tahta sandık

Yetenek temini:

100 adet

Ürün Tanımı

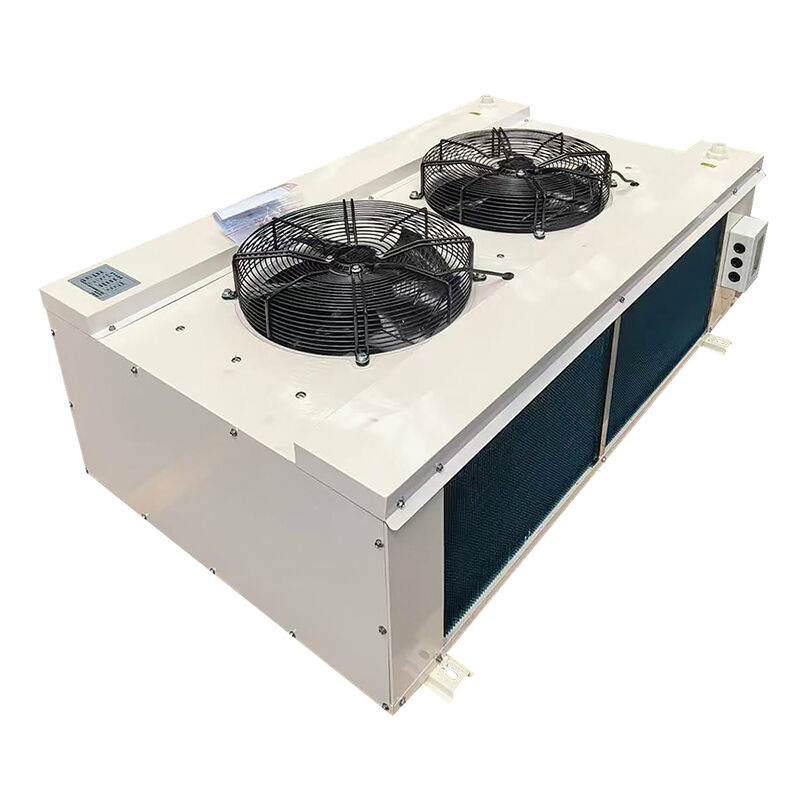

Cold Room Unit

Product Advantages

Structural Process & Heat Exchange Performance

This cold room unit features a powder-coated aluminum alloy shell with excellent corrosion resistance and a smooth, easy-to-clean surface, fully adapting to humid food processing workshop environments. Its staggered copper coil uses mechanical tube expanding technology, creating a tight fit between copper tubes and aluminum fins that improves heat transfer efficiency by 15% compared to ordinary coiling processes. The specially optimized 6mm wide fin spacing for medium-temperature conditions above 8℃ effectively slows frost accumulation, reduces defrosting frequency, and minimizes temperature fluctuations in cold storage.

Scenario Adaptation & Working Condition Performance

The DSD-11.2/60 dual outlet cold room unit is designed for medium-temperature cold storage of approximately 60㎡ with storage temperatures above 8℃. It's widely used in food processing workshops, fresh food chain front warehouses, and catering back-kitchen ingredient preservation rooms. Equipped with 2 φ500mm external rotor fans delivering 2×6500m³/h gentle bidirectional wide-angle airflow with 11200W nominal cooling capacity, it effectively eliminates temperature dead corners in shelf areas, reduces ingredient dry loss, and quickly restores warehouse temperature after frequent door openings and replenishment. The low-noise operation design maintains operating noise as low as 52dB, ensuring minimal interference with the working environment.

Installation Deployment & Operational Value

This ceiling-mounted cold room unit features a standard ceiling-mounted structure with pre-set universal lifting holes, preserving valuable floor storage space and compatible with cold rooms having net heights of 3m and above. The side-mounted inlet and outlet joints flexibly match various pipeline layouts and are compatible with mainstream condensing unit brands including Bitzer, Copeland, and Danfoss. This enables quick adaptation to both new cold storage projects and renovation projects, reducing secondary modification costs. The modular structure design allows independent disassembly and replacement of wearing parts like fans and heating tubes, simplifying daily cleaning and maintenance while effectively reducing lifecycle operational costs.

For larger cold storage spaces above 100㎡, our DSD-18.7/100 medium temperature cold room unit meets higher cooling demands.

Product Images

Technical Specifications

Model	DSD-11.2/60
Nominal Cooling Capacity	11200 W
Heat Exchange Area	60 ㎡
Tube Volume	11.1 L
Inlet & Outlet Pipe Diameter	φ19 mm / φ32 mm
Coil Defrosting Power	6000 W
Water Dish Defrosting Power	3000 W

Company Profile

Ruifujie is a professional modern refrigeration equipment manufacturer with over 20 years of in-depth experience in the global cold chain industry. Our comprehensive product portfolio covers scroll, piston, rotor, semi-hermetic and screw refrigeration compressors, along with supporting cold room systems, quick-freezing equipment, and ice making machines. Our products are widely exported to Russia, the United States, and Saudi Arabia. Backed by strong technical expertise, strict quality control, and competitive pricing, we've established long-term stable partnerships with global buyers and consistently receive positive feedback from international customers.

Packaging and Shipping

Frequently Asked Questions

Q: What size cold room unit do I need for a 60 square meter 8℃ cold room?

A: The DSD-11.2/60 cold room unit with 11200W cooling capacity is ideal for 60㎡ medium-temperature cold storage above 8℃. Its dual outlet airflow design ensures uniform temperature coverage, suitable for vegetable and fruit fresh-keeping, dairy product storage, and food processing raw material scenarios.

Q: What are the benefits of 6mm fin spacing for medium temperature cold room units?

A: The 6mm wide fin spacing is specially designed for medium-temperature working conditions above 8℃. It effectively slows frost accumulation, reduces defrosting frequency, maintains stable cold room temperature, and facilitates daily cleaning and maintenance of the fins to extend unit service life.

Q: Can this dual outlet cold room unit be used in existing cold storage renovation projects?

A: Yes. This unit adopts standard mounting dimensions and conventional interface specifications, enabling direct adaptation to original pipeline and lifting structures of most conventional cold rooms. It's compatible with mainstream condensing unit brands, reducing secondary modification work and construction costs for renovation projects.

Q: What is the lead time for bulk orders of cold room refrigeration units?

A: For standard in-stock models, samples ship within 3 working days, and bulk orders deliver within 10-15 working days after payment confirmation. Customized orders have separate lead times based on specific requirements.

Q: What warranty do you offer for industrial cold room units?

A: All our refrigeration products include a 1-year standard warranty. During the warranty period, we provide free replacement of defective non-human damaged parts and lifelong technical support for all models.

Get a Tailored Refrigeration Solution

If you need professional model selection guidance for your cold storage project, or want to obtain detailed wholesale quotations and technical drawings, contact us directly. Our professional refrigeration engineering team will reply within 8 hours with customized solutions and exclusive pricing.
