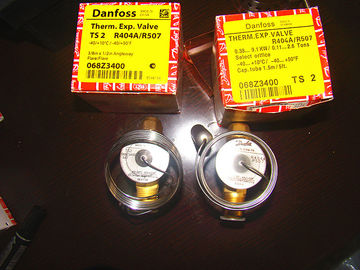

| Marka Adı: | original |
| Model Numarası: | Ts2 068Z400 |
| Moq: | 1pcs |
| fiyat: | discussed |
| Teslim Zamanı: | 7-10 working days after received your payment |
| Ödeme Şartları: | L/C, T/T, Western Union |
Specifications:
1. Regriratant:R404A/R507/R22/R134a/R12/R502

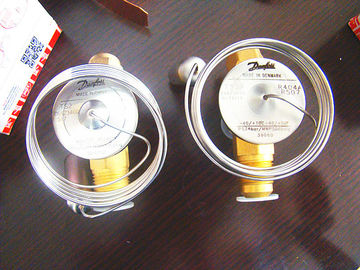

2.Thermostatic expansion valve regulate the flow of refrigerant liquid into The evaporator.
3.The flow is controlled by the valve is thermal bulb which is Attached to the suction line at the outlet of the evaporator.
4.The thermal Bulb senses the evaporator heat and adjusts the valve to admit refrigerant Liquid in accordance with the refrigerating load.
| TX Valves | ||||
| Model T2 & TE2 (with Interchangeable Orifice Assembly) | ||||
| Part Number | Refrigerant | Model | Connections | Equaliser Connection |
| Range N: -40° to +10°C – without MOP | ||||
| 068Z3400 | R404A/R507 | TS2 | 3/8" x 1/2" Fl. | INT. |

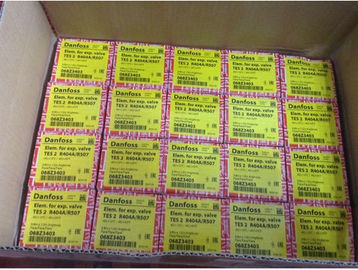

| 068Z3403 | TES2 | 3/8" x 1/2" Fl. | EXT 1/4" FL | |
| 068Z3206 | R22 | TX2 | 3/8" x 1/2" Fl. | INT. |
| 068Z3209 | TEX2 | 3/8" x 1/2" Fl. | EXT 1/4" FL | |
| 068Z3346 | R134a | TN2 | 3/8" x 1/2" Fl. | INT. |
| 068Z3348 | TEN2 | 3/8" x 1/2" Fl. | EXT 1/4" FL | |
| 068Z3202 | R12 | TF2 | 3/8" x 1/2" Fl. | INT. |
| 068Z3204 | TEF2 | 3/8" x 1/2" Fl. | EXT 1/4" FL | |
| 068Z3212 | R502 | TY2 | 3/8" x 1/2" Fl. | INT. |
| 068Z3215 | TEY2 | 3/8" x 1/2" Fl. | EXT 1/4" FL | |
| 068Z3414 | R404A/R507 | TS2 | 3/8" x 1/2" Fl. | INT. |
| 068Z3415 | TES2 | 3/8" Fl. x 1/2" ODF | EXT 1/4" FL | |
| 068Z3281 | R22 | TX2 | 3/8" Fl. x 1/2" ODF | INT. |
| 068Z3284 | TEX2 | 3/8" Fl. x 1/2" ODF | EXT 1/4" FL | |
| 068Z3383 | R134a | TN2 | 3/8" Fl. x 1/2" ODF | INT. |
| 068Z3385 | TEN2 | 3/8" Fl. x 1/2" ODF | EXT 1/4" FL | |
| Range N: -40° to +10°C – with MOP | ||||
| 068Z3402 | R404A/R507 | TS2 | 3/8" x 1/2" Fl. | INT. |
| 068Z3405 | TES2 | 3/8" x 1/2" Fl. | EXT 1/4" FL | |
| 068Z3208 | R22 | TX2 | 3/8" x 1/2" Fl. | INT |
| 068Z3211 | TEX2 | 3/8" x 1/2" Fl. | EXT 1/4" FL | |
| 068Z3347 | R134a | TN2 | 3/8" x 1/2" Fl. | INT |
| 068Z3349 | TEN2 | 3/8" x 1/2" Fl. | EXT 1/4" FL | |
| Range NM: -40° to -5°C – with MOP | ||||
| 068Z3225 | R22 | TEX2 | 3/8" x 1/2" Fl. | EXT 1/4" FL |
| Range NL: -40° to -15°C – with MOP | ||||
| 068Z3408 | R404A/R507 | TS2 3/8" x 1/2" Fl. | INT | |
| 068Z3409 | TES2 | 3/8" x 1/2" Fl. | EXT 1/4" FL | |
| 068Z3226 | R22 | TX2 | 3/8" x 1/2" Fl. | INT |
| 068Z3227 | TEX2 | 3/8" x 1/2" Fl. | EXT 1/4" FL | |
| 068Z3369 | R134a | TN2 | 3/8" x 1/2" Fl. | INT |
| 068Z3370 | TEN2 | 3/8" x 1/2" Fl. | EXT 1/4" | |
| 068Z3430 | R404 | TES2 | 3/8" Fl. x 1/2" ODF | EXT 1/4" FL |
| Range B: -60° to -25°C – with MOP | ||||
| 068Z3410 | R404A | TS2 | 3/8" x 1/2" Fl. | INT |
| 068Z3411 | TES2 | 3/8" x 1/2" Fl. | EXT 1/4" FL | |
| 068Z3232 | R502 | TY2 | 3/8" x 1/2" Fl. | INT |
| 068Z3233 | TEY | 3/8" x 1/2" Fl. | EXT 1/4" FL | |
| 068Z3420 | R404 | TS2 | 3/8" Fl. x 1/2" ODF INT | |
| Range B: -60° to -25°C – without MOP | ||||
| 068Z3404 | R404A | TES2 | 3/8" x 1/2" Fl. | EXT 1/4" FL |
|
|
