| Sertifika: | Certification:CE,VDE,CC | Gerilim: | 380V |
|---|---|---|---|
| Ağırlık: | 37kgs | Garanti: | bir yıl |
| Soğutucu: | R22 | Yağlama Stili: | Yağlı |
| Vurgulamak: | horizontal scroll compressor,hitachi ac compressor |
||

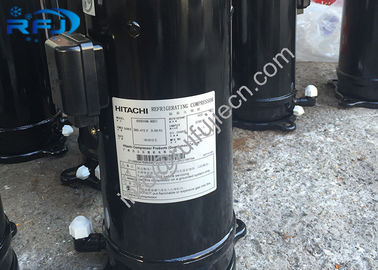

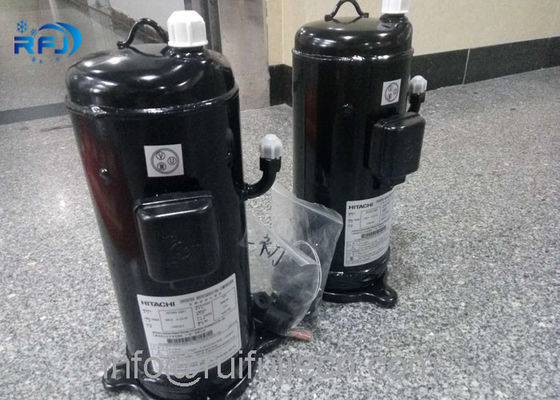

Hitachi Brand Air Conditioner r22 scroll compressor 503DH-83C2 High efficiency
1.Product Name
Hitachi compressor
Model: 503DH-80D2
Voltage: 380~415V/3phase/50HZ
Refrigerant:R22
BTU:50800
Capacity:14900W
COP:3.4
2.All the following model could supply:
| Type | Model | Refrigerant | Cooling Capacity | Test Electricity | Power | Current | COP | Oil filled | |
| BTU/H | WATTS | WATTS | RLA | W/W | L | ||||
| Standard | 303DH-47D2 | R22 | 29500 | 8650 | 380V 3~50Hz | 2700 | 4.8 | 3.2 | 1.2 |
| 303DH-50D2 | R22 | 32220 | 9450 | 380V 3~50Hz | 2900 | 5.3 | 3.2 | 1.2 | |
| 353DH-56D2 | R22 | 35460 | 10400 | 380V 3~50Hz | 3200 | 5.7 | 3.25 | 1.2 | |
| 403DH-64D2 | R22 | 40240 | 11800 | 380V 3~50Hz | 3600 | 6.3 | 3.4 | 1.2 | |
| 453DH-72D2 | R22 | 46040 | 13500 | 380V 3~50Hz | 4000 | 7 | 3.4 | 1.4 | |
| 503DH-80D2 | R22 | 50800 | 14900 | 380V 3~50Hz | 4400 | 7.5 | 3.4 | 1.4 | |
| 503DH-83D2 | R22 | 52510 | 15400 | 380V 3~50Hz | 4550 | 8 | 3.4 | 1.4 | |
| 603DH-90D2 | R22 | 57290 | 16800 | 380V 3~50Hz | 5100 | 8.6 | 3.3 | 1.4 | |
| 803DH-95D2 | R22 | 60020 | 17600 | 380V 3~50Hz | 5300 | 9.1 | 3.3 | 1.4 | |
| Tandem | 303DH-47D2Y | R22 | 29500 | 8650 | 380V 3~50Hz | 2700 | 4.8 | 3.2 | 1.8 |
| 303DH-50D2Y | R22 | 32220 | 9450 | 380V 3~50Hz | 2900 | 5.3 | 3.2 | 1.8 | |
| 353DH-56D2Y | R22 | 35460 | 10400 | 380V 3~50Hz | 3200 | 5.7 | 3.25 | 1.8 | |
| 403DH-64D2Y | R22 | 40240 | 11800 | 380V 3~50Hz | 3600 | 6.3 | 3.25 | 1.8 | |
| 453DH-72D2Y | R22 | 46040 | 13500 | 380V ~50Hz | 4000 | 7 | 3.4 | 1.8 | |
| 503DH-80D2Y | R22 | 50800 | 14900 | 380V 3~50Hz | 4400 | 7.5 | 3.4 | 1.8 | |
| 503DH-83D2Y | R22 | 52510 | 15400 | 380V 3~50Hz | 4550 | 8 | 3.4 | 1.8 | |
| 603DH-90D2Y | R22 | 57290 | 16800 | 380V 3~50Hz | 5100 | 8.6 | 3.3 | 1.8 | |
| 603DH-95D2Y | R22 | 60020 | 17600 | 380V 3~50Hz | 5300 | 9.1 | 3.3 | 1.8 | |
Hitachi R407C AC Inverter Scroll Compressor's specification is below:
| MODEL | DESPL. | NOMINAL CAPACITY | INPUT POWER | COP | ||
| cm3/r | BTU/H | Matts | Matts | EER | W/W | |
| 303DHV-47B2(V) | 47 | 37510 | 11000 | 30-90 | 19.1 | 10.9 |
| 303DHV-47D2(V) | 47 | 37510 | 11000 | 30-90 | 8.9 | 11.2 |
| 403DHV-64D2(V) | 64 | 49790 | 14600 | 30-90 | 11.8 | 10.9 |
| 401DHV-64D2(V) | 64 | 63220 | 18540 | 20-115 | 10.8 | 10.9 |
| 503DHV-80D2(V) | 80 | 62470 | 18400 | 30-90 | 15.5 | 11.2 |
| SPECIFICATIONS FOR 503DH-83C2 | |||
|
Products Details |
Models: BSD122DT-P6AU | Type | Rotary / Hermetic |
| Power | Phase | 3 | |
| Horse Power | HP | 5 | |
|
Main performance parameters |
Cooling Capacity | Btu / h | 22900 |
| Cooling Capacity | W | 13240 | |
| Input Power | W | ||
|
Physcial parameters |
Hight | MM | |
| Weight | KG | 37 | |
| Q'ty / Pallet | PIECE | 16 | |
