| Marka Adı: | RFJ |
| Model Numarası: | Spb03kl |
| Moq: | 1piece |
| fiyat: | discussed |
| Teslim Zamanı: | 3-7 days |
| Ödeme Şartları: | T/T, Western Union |
Product Description
Fan speed regulator:
Adjust condensing fan according to condensing temp.
Operation data display function:
To check important data such as current of compressor, and condensing temp.
System alarm function:
When fault effects, the system will make alarm sound to remind user
Independent Operation board:
1. For temp. showing, defrosting controlling, operation system data checking and temp. alarming
2. Can be installed anywhere available.

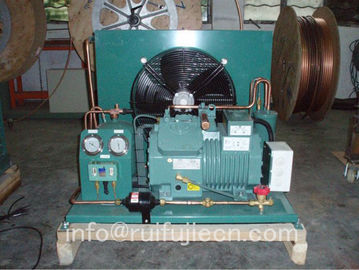

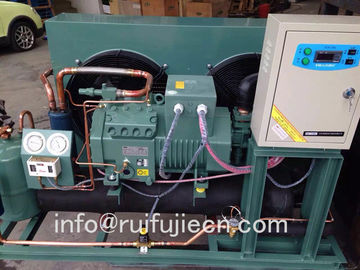

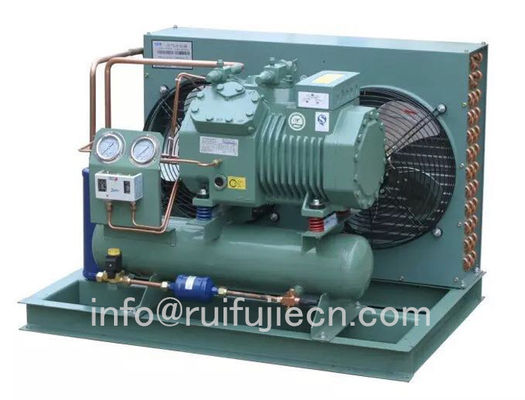

2.Picture
3.Technical
| Technical Data Of Air Cooled Compressor Condensing Unit | ||||
| Technical Data For Air-cooled Compressor Condensing Unit with medium & LowTemperature | ||||
| Condensing Unit model | Compressor Model | Power Supply | refrigerating capacity(KW) | input power(KW) |
| SPB03KL | 2CES-3Y | 380V/3PH/50HZ | 4.77 | 2.91 |
| SPB04KL | 4EES-4Y | 6.49 | 4.05 | |
| SPB05KL | 4DES-5Y | 7.55 | 4.79 | |
| SPB06KL | 4CES-6Y | 9.28 | 5.66 | |
| SPB09KL | 4TES-9Y | 11.41 | 6.74 | |
| SPB12KL | 4PES-12Y | 12.64 | 7.34 | |
| SPB14KL | 4NES-14Y | 15.50 | 9.11 | |
| SPB18KL | 4HE-18Y | 21.90 | 12.67 | |
| SPB23KL | 4GE-23Y | 25.80 | 15.06 | |
| SPB28KL | 6HE-28Y | 32.30 | 18.68 | |
| SPB34KL | 6GE-34Y | 38.80 | 22.90 | |
| SPB44KL | 6FE-44Y | 46.20 | 27.50 | |
4.FAQ
Fresh food has a lot of heat and need the big compressor horsepower to cool down within 4-6 hours.
The vertical air cooler have big fin spacing, big air flow and very easy to install.
4-6 hours is fast enough and very economical. 2-3 hours will need even bigger horsepower compressor and more expensive.
video
video
video
video
|
|
