İyi bir fiyat. çevrimiçi

Ürün ayrıntıları

Created with Pixso. Evde Created with Pixso. Ürünler Created with Pixso.
Soğutma Yoğuşma Üniteleri
Created with Pixso. Blue Unit-Spb44kl Air Cooled Condenser Compressor Condensing for Model 6Fes-44y

Blue Unit-Spb44kl Air Cooled Condenser Compressor Condensing for Model 6Fes-44y

Marka Adı: RFJ
Model Numarası: Spb44kl
Moq: 1piece
fiyat: discussed
Teslim Zamanı: 3-7 days
Ödeme Şartları: T/T, Western Union
Ayrıntılı Bilgiler
Place of Origin:
China
Sertifika:
CC
Color:
Blue
Power Supply:
380V 3pH 50Hz
Cooling Capacity:
15.61kw
Input Power:
6.44kw
Original:
China
Tyoe:
condensing unit
OEM service:
Yes
Marka adı:
RFJ
Packaging Details:
wooden packaging
Supply Ability:
10000pieces
Vurgulamak:

ac condenser unit

,

Hava Soğutmalı Yoğuşmalı Ünitesi

Ürün Tanımı

Unit-Spb44kl Air-Cooled Compressor Condensing for Model 4Des-5y


Product Description

This series product features wide temperature range, can be widely used for freshness retain,cold storage,ice-making and cooling water equipments. They employ semi-hermetic compressor, copper pipe & Alu.sheet

air-cooling condenser and Tube and shell water condenser with high efficient heat exchange and long service life;

The Air-cooled unit adopts external rotor fan, features low noise, high efficient. All products adopt domestic

or world famous

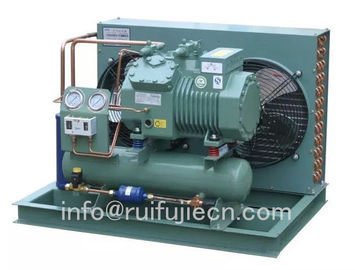

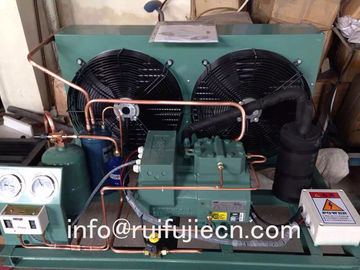

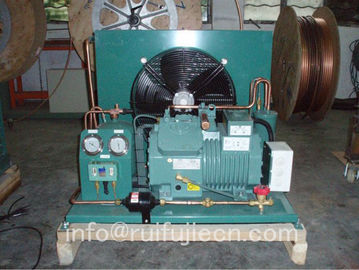

2.Picture

Blue Unit-Spb44kl   Air Cooled Condenser Compressor Condensing for Model 6Fes-44y 0

Blue Unit-Spb44kl   Air Cooled Condenser Compressor Condensing for Model 6Fes-44y 1

3.Technical

Condensing Unit model Air cooled Condenser Specification of connecting tube
Model Total(m3/h) Dia of fan(mm) motor power(W) Return gas(mm) Out let(mm)
SPB03KL FHN28 4400 350 2*200 22 12
SPB04KL FHN34 4400 350 2*200 22 12
SPB05KL FHN42 6000 400 2*300 28 12
SPB06KL FHN49 6000 400 2*300 28 12
SPB09KL FHN71 8800 350 4*200 35 16
SPB12KL FHN80 12000 400 4*300 35 16
SPB14KL FHN100 12000 400 4*300 35 16
SPB18KL FHN115 12000 400 4*300 42 22
SPB23KL FHN131 20000 450 4*370 54 22
SPB28KL LH180 14000 500 2*550 54 22
SPB34KL LH240 28000 500 4*550 54 22
SPB44KL LH300 33000 600 3*780 54 28
Note:Nominal refrigerating capacity and power input are based on conditions of ambient temperature 32℃,evaporating temperature -23℃ and refrigerant R404A.



4.OEM



Not only we have our own brand “RFJ ,

but also we supply the OEM service to our clients.

To satisfy with your need,

we can print your company Logo or design on the units or the other parts
