Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
Type: | Cooler | Application: | Cold Storage Room Freezer |
---|---|---|---|
Horse power: | All available | Voltage: | 380V/3Ph/50Hz and customized |
Refrigerant: | R404A | Compressor model: | VHK5343-30 |
Cooling capacity: | 220.2kw | Suction pipe interface: | 76x2mm |
Exhaust pipe interface: | 76mm | Outlet interface: | 57mm |
Inlet pipe interface: | 76mm | Length: | 3000mm |
Width: | 1550mm | Heigh: | 1900mm |
Vurgulamak: | Hava Soğutmalı Yoğuşmalı Ünitesi,bitzer condenser unit |

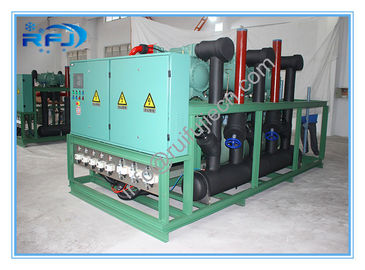

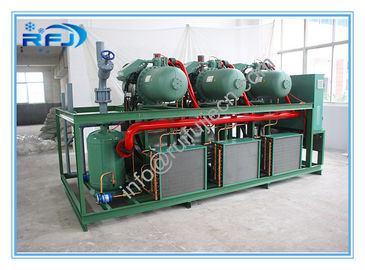

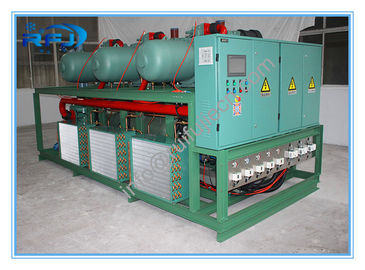

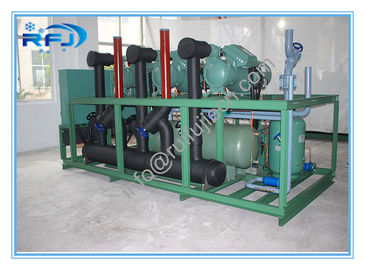

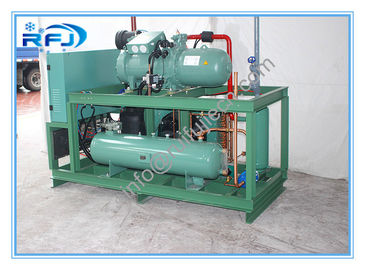

High Temperature Air Cooled Condensing Unit For Blast Freezer , Three Screw Compressor Rack
Air cooled three screw compressor rack high temperature condensing unit for blast freezer DM3B30RFH
Warranty | 1 year |
Type | Compressor unit |
Compressor type | Screw-type compressor |
Control power supply | 220V/Custom made |
Rack main power supply | 380V/Custom made |
Refrigerant | R22/R404a/other |
Style | Parallel unit |
Application | Cold Room/Cold Storage |
Features | Energy saving |
Refrigeration temperature | Customizable |
Main accessories | |
Compressors | Storage tanks |
Filters | Oil separate |
Distribution box | Ac contactors |
Time relays | Indicator light |
Sight glass | Expansion valve |
Condenser | Silencer |
High and low voltage meter | Pressure controller |
High pressure hoses | Overload thermal relays |
Pressure switch | Knob switch |
Screw-type parallel compressor unit
Energy saving and reliable,medium, low and super low temperature working condition,Widely used in foods, chemical, pharmaceutical, display cases, supermarket and industrial refrigeration.
Refrigeration units, the key part for an cooling equipment, continuous provide cooling capacity to remove heat by condenser part.
In industrial area, refrigeration units not only request the basic function, also it need be reliable&stable enough support 7*24hrs running, and also should be high energy efficient for power saving.
Start in 2000, Huayu Brother( refrigeration units ) engineer team have focus on the system over 17 years with fruitful achievements , reputations and honors from worldwide clients.
Our refrigeration units not only for our IQF, cold room products, also we could design and produce as per your request.
With tens years experience, Huayu Brother refrigerating units with incredible stability and power saving:
1, > 80000 hours Non-failure running.
2. >15% power saving than other brand with same configurations, but cooling capacity 10% higher.
3. Flexible configurations as per your require.
4. Based on your application, we can provide low/middle/high temperature refrigerating units. Specially we have rich experience for system that for IQF, water chiller, cold room etc. industrial equipment.
Mostly, the refrigeration units design as per your application equipment, its cooling capacity request, final temperature etc.
Huayu Brother engineer team could satisfy any of your request and design perfect products for your project, please feel free contact us.
l General Description
The BHLG series Product feature by their structures of multi- Hanbell compressors paralleled together to form one integrated systems. The products are applicable to large size cold rooms, ice making, chilled water making etc with temperature requirement ranging -5℃~ 5℃and -20℃~-15℃. The products are equipped with multi protection devices for wrong direction, overheating, overloading, overhigh discharging temperature, overlower oil level, oil flow, and high and low pressures etc.
l Standard components:
Copeland/Bizter /Maneurop/Hanbell/Fusheng
Filter drier
Liquid receiver
Pressure gauge
Solenoid valve
Pressure control
Electrical panel
l Optional components:
Fan speed control
Oil separator
Vibration eliminator
Suction accumulator
Sight glass
Crankcase heater
l Technical Details:
Water Cooled M/H type Racks
Design working Condition: Evaporation Temperature: -7℃. Cooling water Tin/Tout: 30℃/35℃.
Model | HLGS | |||||||||
30M | 40M | 50M | 60M | 70M | 80M | 90M | ||||
compressor | Model | RC2-100B | RC2-140B | RC2-180B | RC2-230B | RC2-260B | RC2-310B | RC2-340B | ||
Type | Screw | |||||||||
Capacity regulator | 66%-100% | 50%-75%-100% | ||||||||
Te-5℃ | Cap(kW) | 66.9 | 91.2 | 119.8 | 159 | 174.5 | 217.5 | 237.9 | ||
Input(kW) | 21.9 | 28.9 | 36.2 | 48.4 | 52.7 | 62.4 | 68.7 | |||
Te-7℃ | Cap(kW) | 61.8 | 84.3 | 110.7 | 146.9 | 161.3 | 201 | 219.9 | ||
Input(kW) | 21.6 | 28.4 | 35.6 | 47.5 | 51.8 | 61.3 | 67.5 | |||
Te-10℃ | Cap(kW) | 54.7 | 74.7 | 98.1 | 130.2 | 142.9 | 178.2 | 194.9 | ||
Input(kW) | 21.0 | 27.7 | 34.7 | 46.3 | 50.4 | 59.7 | 65.8 | |||
Room Tem(℃) | -5~5℃ | |||||||||
Refrigerant | R22 | |||||||||
Power supply | 380V/3P/50Hz | |||||||||
Max current | A | 69 | 91 | 121 | 158 | 171 | 203 | 220 | ||
Condnsr | Type | Shell & tube | ||||||||
Water flow(m3/h) | 19 | 26 | 34 | 45 | 49 | 60 | 66 | |||
dia | DN65 | DN65 | DN80 | DN80 | DN100 | DN100 | DN100 | |||
Gas dia(mm) | Φ54 | Φ54 | Φ67 | Φ76 | Φ76 | Φ76 | Φ108 | |||
Liquid dia(mm) | Φ28 | Φ28 | Φ35 | Φ35 | Φ35 | Φ35 | Φ42 | |||
Overall sizes | A(mm) | 1700 | 1700 | 2150 | 2300 | 2300 | 2600 | 2600 | ||
B(mm) | 670 | 670 | 680 | 770 | 770 | 850 | 850 | |||
C(mm) | 1100 | 1100 | 1100 | 1250 | 1250 | 1250 | 1300 | |||
Install sizesa×b (mm) | 120*390 | 120*390 | 120*390 | 1200*500 | 1200*500 | 1500*500 | 1500*500 | |||
