İyi bir fiyat. çevrimiçi

Ürün ayrıntıları

Created with Pixso. Evde Created with Pixso. Ürünler Created with Pixso.
Soğutma Yoğuşma Üniteleri
Created with Pixso. Air Cooled Screw Compressor Condenser Unit / Damai R404a Condensing Units

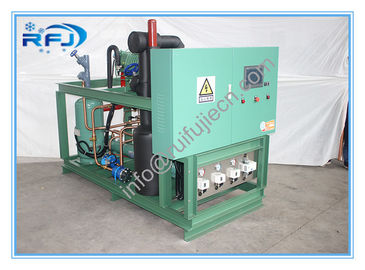

Air Cooled Screw Compressor Condenser Unit / Damai R404a Condensing Units

Marka Adı: damai
Model Numarası: DM1D20RFL
Moq: 1
fiyat: discussed
Teslim Zamanı: 1 month
Ödeme Şartları: T/T, Western Union
Ayrıntılı Bilgiler
Place of Origin:
China
Sertifika:
CE
compressor model:
VHN5343-20
Power Supply:
380V/50HZ
Refrigerant:
R404A
Evaporative Temperature:
-20℃~-40℃
suction pipe interface:
76*2 mm
Exhaust Pipe Interface:
76
Outlet Interface:
28
Inlet Pipe interface:
35
Length:
2000mm
Width:
1050mm
Height:
1500mm
Packaging Details:
wooden box
Supply Ability:
1000PC/ MONTH
Vurgulamak:

ac condenser unit

,

bitzer condenser unit

Ürün Tanımı

Air Cooled Screw Compressor Condenser Unit / Damai R404a Condensing Units





We are a manufacturer, we can customize products for you according to your requirements.If you don't know which model is suitable for you, you could send message to us.We have several professional engineers to make a customized solution for you.









Air Cooled Two Screw Compressor Rack(Medium&Low Temperature)
Model DM1B20RFL DM1B25RFL DM1B30RFL DM1B40RFL
Evaporative Temperature -20℃ ~ -D40℃
Refrigerant R404A
Power Supply 380V/50HZ
Compressor Model VHN5343-20 VHN5353-25 VHN5363-30 VHN6451-40
Numbers of Compressors 1 1 1 1
capacity Evaporation temperature -20℃ cooling capacity(KW) 42.1 49.1 56.2 67.5
Electric Power 27.1 30.1 34.9 38.7
Evaporation temperature -30℃ cooling capacity(KW) 28.6 33.5 38.7 46.4
Electric Power 25.3 28.7 32.4 36.1
Evaporation temperature -40℃ cooling capacity(KW) 18.1 21.4 25.1 29.9
Electric Power 23 26.1 29.5 33.2
interface suction pipe interface(mm) 54 76 54 54
Exhaust pipe interface(mm) 42 57 42 42
Outlet interface(mm) 28 45 28 28
Inlet pipe interface(mm) 35 57 35 35
Size Length(mm) 2000 2200 2000 2200
Width(mm) 1050 1050 1050 1050
Height(mm) 1500 1500 1500 1500
Note:Condensation temperature +40℃ with economizer



Quick Details

Type:Condensing Unit

Place of Origin:China (Mainland)

Brand Name:Damai

Model Number:DM3B20RFL

Certification:CE, ISO,CCC

Voltage:380V/50HZ

-20 ~ --40℃

Color:Green

Application:Refrigeration Parts



Packaging & Delivery

Packaging Details

Packed in plywood case, safe and free of fumigation

Delivery Time

15days after payment



Every company deeply understand that quality is the basic weapon for an enterprise to win. Quality is one of the factor that helped the business to achieve success, so we strive to provide qualitative business.



Our Quality Control department is comprised of experienced engineers, technicians and QC inspectors. The best products from the high reputation company and will do better than any other company.
