| Marka Adı: | rfj |
| Model Numarası: | DM3B50RFL |
| Moq: | 1 |
| fiyat: | discussed |
| Teslim Zamanı: | 1 month |
| Ödeme Şartları: | T/T, Western Union |

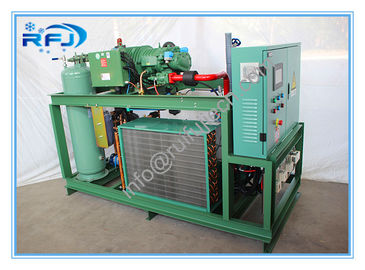

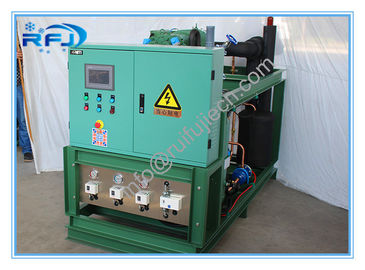

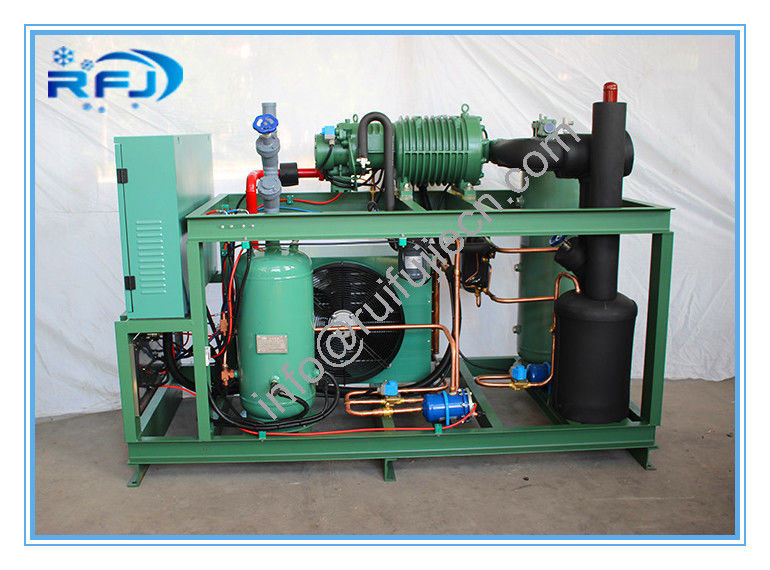

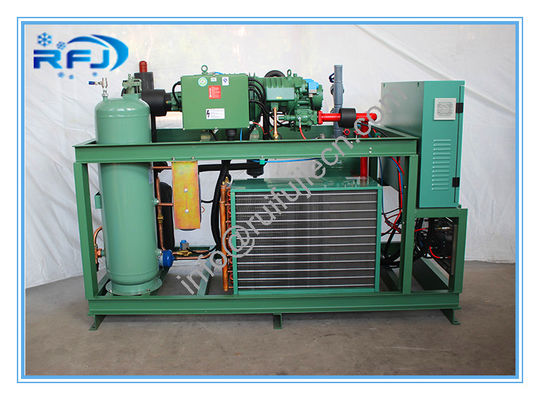

DM3B50RFL Blast Freezer Condenser Unit , Freezer Compressor Unit Energy Savings
| Air Cooled Two Screw Compressor Rack(Medium&Low Temperature) | |||||||
| Model | DM3B40RFL | DM3B50RFL | DM3B20RFL | DM3B25RFL | DM3B30RFL | ||
| Evaporative Temperature | -20℃ ~ -D40℃ | ||||||
| Refrigerant | R404A | ||||||
| Power Supply | 380V/50HZ | ||||||
| Compressor Model | VHN6451-40 | VHN6461-50 | VHN5343-20 | VHN5353-25 | VHN5363-30 | ||
| Numbers of Compressors | 3 | 3 | 3 | 3 | 3 | ||
| capacity | Evaporation temperature -20℃ | cooling capacity(KW) | 202.5 | 230.4 | 136.3 | 147.3 | 168.6 |
| Electric Power | 116.1 | 140.4 | 81.3 | 90.3 | 104.7 | ||
| Evaporation temperature -30℃ | cooling capacity(KW) | 139.2 | 159.6 | 85.8 | 100.5 | 116.1 | |
| Electric Power | 108.3 | 128.7 | 75.9 | 86.1 | 97.2 | ||
| Evaporation temperature -40℃ | cooling capacity(KW) | 89.7 | 104.7 | 54.3 | 64.2 | 75.3 | |
| Electric Power | 99.6 | 116.4 | 69 | 78.3 | 88.5 | ||
| interface | suction pipe interface(mm) | 76*2 | 76*2 | 76*2 | 76*2 | 76*2 | |
| Exhaust pipe interface(mm) | 76 | 76 | 76 | 76 | 76 | ||
| Outlet interface(mm) | 57 | 57 | 45 | 57 | 57 | ||
| Inlet pipe interface(mm) | 76 | 76 | 57 | 76 | 76 | ||
| Size | Length(mm) | 3500 | 3500 | 3000 | 3000 | 3000 | |
| Width(mm) | 1550 | 1550 | 1550 | 1550 | 1550 | ||
| Height(mm) | 1900 | 1900 | 1900 | 1900 | 1900 | ||
| Note:Condensation temperature +40℃ with economizer | |||||||
